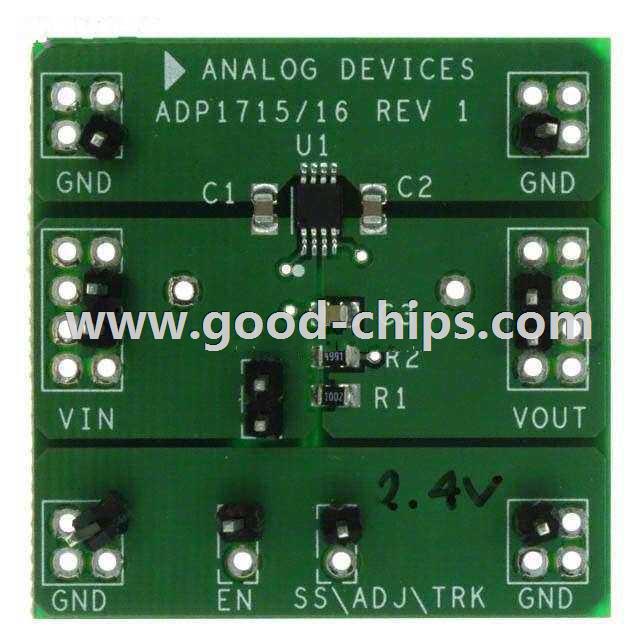

Manufacturer Part Number: | ADP1715-EVALZ |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | Evaluation Boards - Linear Voltage Regulators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | ADP1715 1 - Single Channels per IC Positive Adjustable Linear Voltage Regulator Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ADP1715-EVALZ Datasheet |
Internal Part Number | 898-ADP1715-EVALZ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Linear Voltage Regulators | |
Manufacturer | Analog Devices Inc. | |
Series | - | |
Part Status | Active | |
Channels per IC | 1 - Single | |
Voltage - Output | 2.4V | |
Current - Output | 500mA | |
Voltage - Input | 2.5 V ~ 5.5 V | |
Regulator Type | Positive Adjustable | |
Operating Temperature | -40°C ~ 125°C | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | ADP1715 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ADP1715-EVALZ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ADP1715-EVALZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADP1715-EVALZ is new and unused, you can buy ADP1715-EVALZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADP1715-EVALZ.
