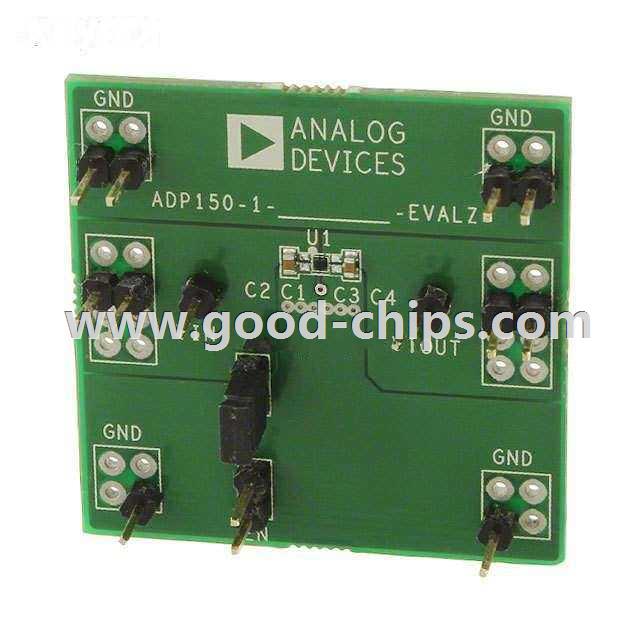

| Manufacturer Part Number: | ADP150CB-3.3-EVALZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - Linear Voltage Regulators |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |
| Description: | ADP150 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADP150CB-3.3-EVALZ Datasheet |
| Internal Part Number | 898-ADP150CB-3.3-EVALZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Biochemistry Analyzer Solutions Automatic External Defibrillator (AED) Solutions Solution for Wireless Communication Tester Spectrum Analyzer Solutions Magnetic Resonance Imaging (MRI) Solutions Activity Monitoring Solution Electrocardiogram (ECG) Solutions RF Signal Source Solutions | |
| Design Resources | Broadband Low EVM Direct Conversion Transmitter Using LO Divide-by-2 Modulator (CN0144) Using low noise linear drop-out regulators to power wideband PLL & VCO IC's (CN0147) CN0134 Development Tool Selector | |
| Featured Product | CN0285 Direct Conversion Transmitters | |
| Online Catalog | ADP150 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Linear Voltage Regulators | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Part Status | Active | |
| Channels per IC | 1 - Single | |
| Voltage - Output | 3.3V | |
| Current - Output | 150mA | |
| Voltage - Input | 2.2 V ~ 5.5 V | |
| Regulator Type | Positive Fixed | |
| Operating Temperature | -40°C ~ 125°C | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | ADP150 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADP150CB-3.3-EVALZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADP150CB-3.3-EVALZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADP150CB-3.3-EVALZ is new and unused, you can buy ADP150CB-3.3-EVALZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADP150CB-3.3-EVALZ.
