| Manufacturer Part Number: | ADP125ARHZ-R7 |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | PMIC - Voltage Regulators - Linear |
| Available Quantity: | 13010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Linear Voltage Regulator IC Positive Adjustable 1 Output 0.8 V ~ 5 V 500mA 8-MSOP-EP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADP125ARHZ-R7 Datasheet |
| Internal Part Number | 898-ADP125ARHZ-R7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Electromagnetic Flow Meter Solutions Wireless Sensor Network (WSN) Solutions Renewable Energy—Solar PV Solutions Electrocardiogram (ECG) Solutions | |
| Video File | Lowest Noise LDOs Enable Cutting Edge Signal Chain Performance | |
| PCN Assembly/Origin | Assembly Site Addition 05/Jan/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | < 5V(Max) | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Linear | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Regulator Topology | Positive Adjustable | |
| Voltage - Output | 0.8 V ~ 5 V | |
| Current - Output | 500mA | |
| Voltage - Dropout (Typical) | 0.13V @ 500mA | |
| Number of Regulators | 1 | |
| Voltage - Input | 2.3 V ~ 5.5 V | |
| Current - Limit (Min) | 550mA | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |

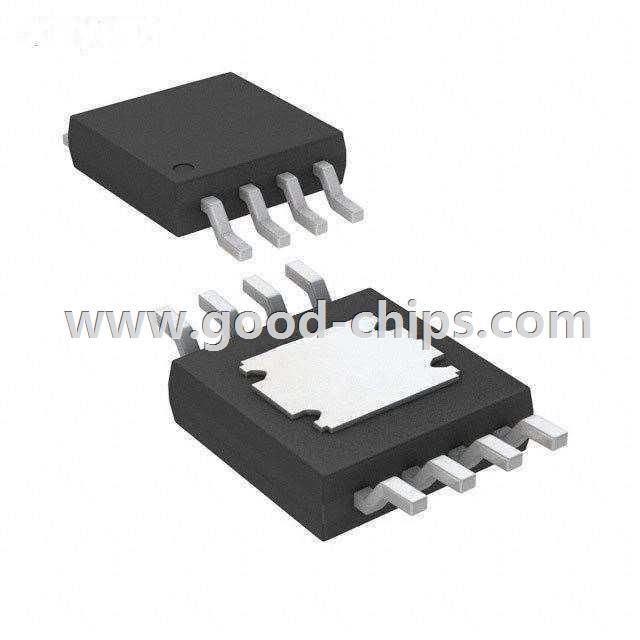

| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | |
| Supplier Device Package | 8-MSOP-EP | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADP125ARHZ-R7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADP125ARHZ-R7 is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADP125ARHZ-R7 is new and unused, you can buy ADP125ARHZ-R7 Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADP125ARHZ-R7.
