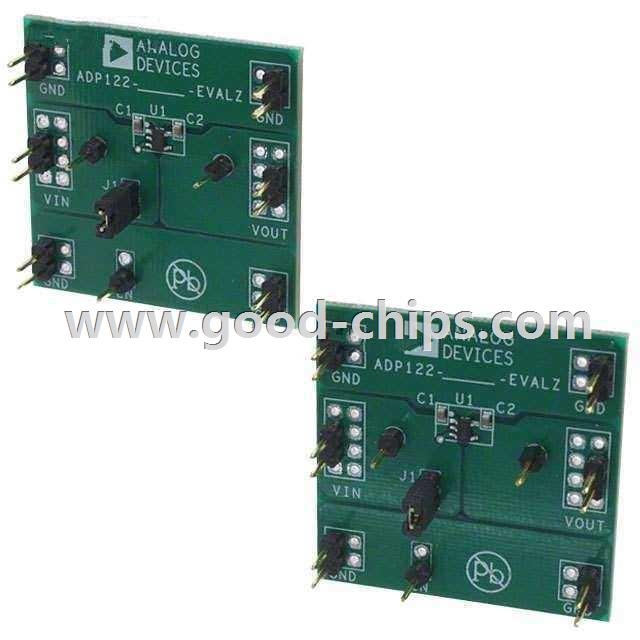

| Manufacturer Part Number: | ADP122UJZ-REDYKIT |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - Linear Voltage Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | ADP122 RedyKit™ Series 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADP122UJZ-REDYKIT Datasheet |
| Internal Part Number | 898-ADP122UJZ-REDYKIT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Activity Monitoring Solution Electrocardiogram (ECG) Solutions | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Linear Voltage Regulators | |
| Manufacturer | Analog Devices Inc. | |
| Series | RedyKit™ | |
| Part Status | Active | |
| Channels per IC | 1 - Single | |
| Voltage - Output | 2.5V, 3.3V | |
| Current - Output | 300mA | |
| Voltage - Input | 2.3 V ~ 5.5 V | |
| Regulator Type | Positive Fixed | |
| Operating Temperature | -40°C ~ 85°C | |
| Board Type | Fully Populated | |
| Supplied Contents | 2 Boards, Samples | |
| Utilized IC / Part | ADP122 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADP122UJZ-REDYKIT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADP122UJZ-REDYKIT is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADP122UJZ-REDYKIT is new and unused, you can buy ADP122UJZ-REDYKIT Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADP122UJZ-REDYKIT.
