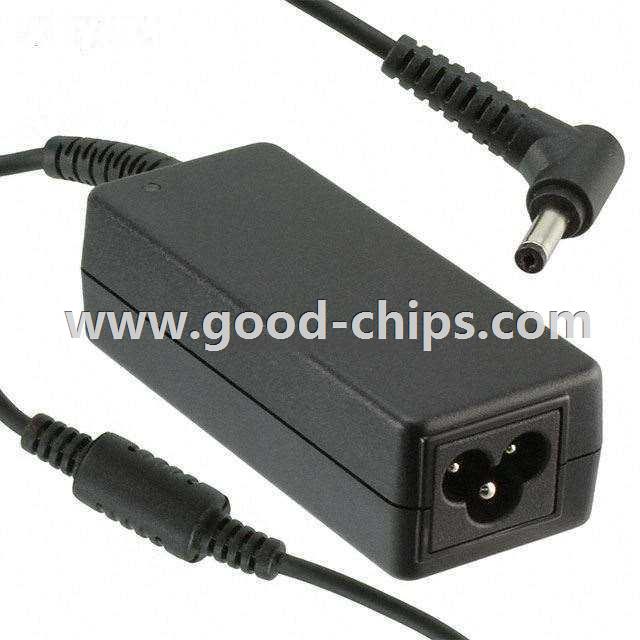

ADP-36PH BH

ADP-36PH BH
Manufacturer Part Number:ADP-36PH BH
Manufacturer:
Product Category:AC DC Desktop, Wall Adapters
Available Quantity:9906 Pieces
Unit Price:Quote by Email
Description:12V 36W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: ADP-36PH BH Datasheet
ADP-36PH BH´s Parameters
Internal Part Number898-ADP-36PH BH
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Other Related DocumentsADP-36PH B PSB COC
ADP-36PH B CB Test Cert
ADP-36PH B Nrcan UL Cert
ADP-36PH B TUV GS Cert
ADP-36PH B TUV Cert
ADP-36PH B A1U Cert
ADP-36PH B Sporton Lab Cert
ADP-36PH B BMSI Cert
ADP-36PH B NOM Cert
Featured ProductLevel VI Power Adapters
Power Management Solutions
Online Catalog ADP Series
CategoryPower Supplies - External/Internal (Off-Board)
FamilyAC DC Desktop, Wall Adapters
ManufacturerDelta Electronics
SeriesADP
Part StatusActive
Region UtilizedInternational
FormDesktop (Class I)
Input TypeCord (Sold Separately)
Voltage - Input90 ~ 264 VAC
Voltage - Output12V
Current - Output (Max)3A
Power (Watts)36W
No Load Power Consumption100mW (Max)
PolarizationPositive Center
ApplicationsITE (Commercial)
EfficiencyLevel VI
Operating Temperature0°C ~ 40°C
Output ConnectorBarrel Plug, 1.7mm I.D. x 4.75mm O.D. x 12.0mm
Size / Dimension3.52" L x 1.46" W x 1.04" H (89.5mm x 37.0mm x 26.5mm)
Approvals-
Power (Watts) - Max36W
Input ConnectorIEC 320-C6
Cord Length70.9" (1.80m)
Weight0.001 KG
Standard Package 1
ApplicationEmail for details
Replacement PartADP-36PH BH
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

ADP-36PH BH is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of ADP-36PH BH is new and unused, you can buy ADP-36PH BH Delta Electronics with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for ADP-36PH BH.
