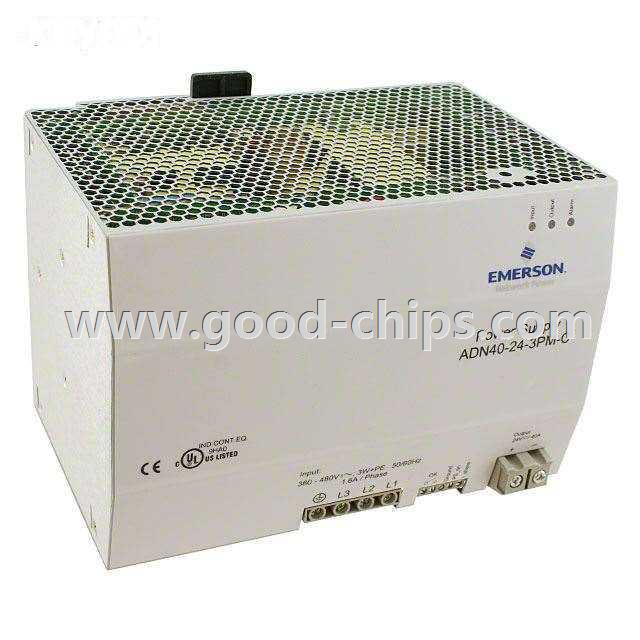

| Manufacturer Part Number: | ADN40-24-3PM-C |
|---|---|
| Manufacturer: | Artesyn Embedded Technologies |
| Product Category: | AC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 24V 960W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADN40-24-3PM-C Datasheet |
| Internal Part Number | 898-ADN40-24-3PM-C | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | Declaration of Conformity | |
| Featured Product | ADN-C Series Power Supplies | |
| PCN Packaging | CSA Marking 20/Sep/2013 | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Artesyn Embedded Technologies | |
| Series | ADN-C | |
| Part Status | Active | |
| Type | Enclosed | |
| Number of Outputs | 1 | |
| Voltage - Input | 320 ~ 540 VAC | |
| Voltage - Output 1 | 24V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 40A | |
| Power (Watts) | 960W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | - | |
| Efficiency | 94% | |
| Operating Temperature | -25°C ~ 70°C (With Derating) | |
| Features | Adjustable Output, DC Input Capable, IP20, Load Sharing, PFC, Universal Input | |
| Mounting Type | DIN Rail | |
| Size / Dimension | 4.68" L x 7.09" W x 4.85" H (123.0mm x 180.0mm x 123.0mm) | |
| Minimum Load Required | - | |
| Approvals | CE | |
| Power (Watts) - Max | 960W | |
| Standard Package | 48 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADN40-24-3PM-C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADN40-24-3PM-C is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of ADN40-24-3PM-C is new and unused, you can buy ADN40-24-3PM-C Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADN40-24-3PM-C.
