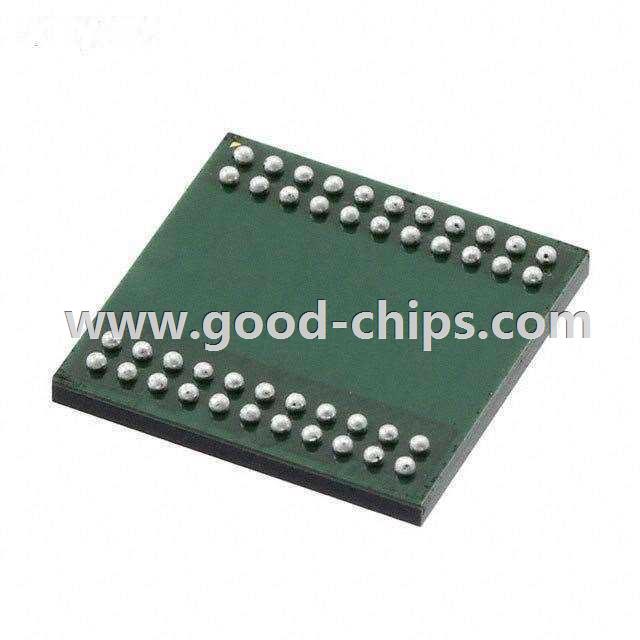

| Manufacturer Part Number: | ADM3252EABCZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Digital Isolators |
| Available Quantity: | 9274 Pieces |
| Unit Price: | Quote by Email |
| Description: | RS232 Digital Isolator 2500Vrms 4 Channel 460Kbps 25kV/µs CMTI 44-LFBGA, CSPBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADM3252EABCZ Datasheet |
| Internal Part Number | 898-ADM3252EABCZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | ADI Programmable Log Controller Solutions | |
| Mfg Application Notes | Programmable Logic Controllers (PLCs) Solutions | |
| PCN Design/Specification | ADM3252E Power Die 01/Dec/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | ADM3252E Series | |
| Category | Isolators | |
| Family | Digital Isolators | |
| Manufacturer | Analog Devices Inc. | |
| Series | IsoPower®, iCoupler® | |
| Packaging | Tray | |
| Part Status | Active | |
| Technology | Magnetic Coupling | |
| Type | RS232 | |
| Isolated Power | Yes | |
| Number of Channels | 4 | |
| Inputs - Side 1/Side 2 | 2/2 | |
| Channel Type | Unidirectional | |
| Voltage - Isolation | 2500Vrms | |
| Common Mode Transient Immunity (Min) | 25kV/µs | |
| Data Rate | 460Kbps | |
| Propagation Delay tpLH / tpHL (Max) | - | |
| Pulse Width Distortion (Max) | - | |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns | |
| Voltage - Supply | 3 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | 44-LFBGA, CSPBGA | |
| Supplier Device Package | 44-CSPBGA (12x12) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADM3252EABCZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADM3252EABCZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADM3252EABCZ is new and unused, you can buy ADM3252EABCZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADM3252EABCZ.
