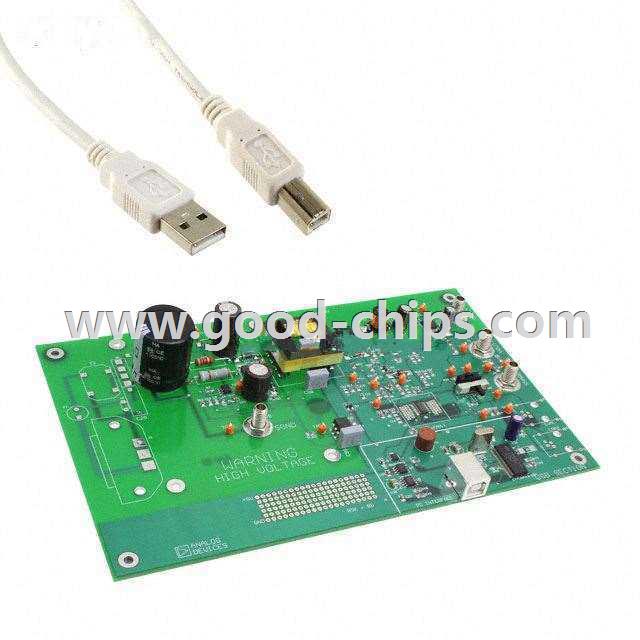

| Manufacturer Part Number: | ADM1041A-EVALZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | ADM1041A - AC/DC, Secondary Side 1, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADM1041A-EVALZ Datasheet |
| Internal Part Number | 898-ADM1041A-EVALZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Part Status | Obsolete | |
| Main Purpose | AC/DC, Secondary Side | |
| Outputs and Type | 1, Non-Isolated | |
| Power - Output | 24W | |
| Voltage - Output | 12V | |
| Current - Output | 2A | |
| Voltage - Input | 85 ~ 132 VAC | |
| Regulator Topology | - | |
| Frequency - Switching | - | |
| Board Type | Fully Populated | |
| Supplied Contents | Board, Cable | |
| Utilized IC / Part | ADM1041A | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADM1041A-EVALZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADM1041A-EVALZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADM1041A-EVALZ is new and unused, you can buy ADM1041A-EVALZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADM1041A-EVALZ.
