| Manufacturer Part Number: | ADM00640 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - Op Amps |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

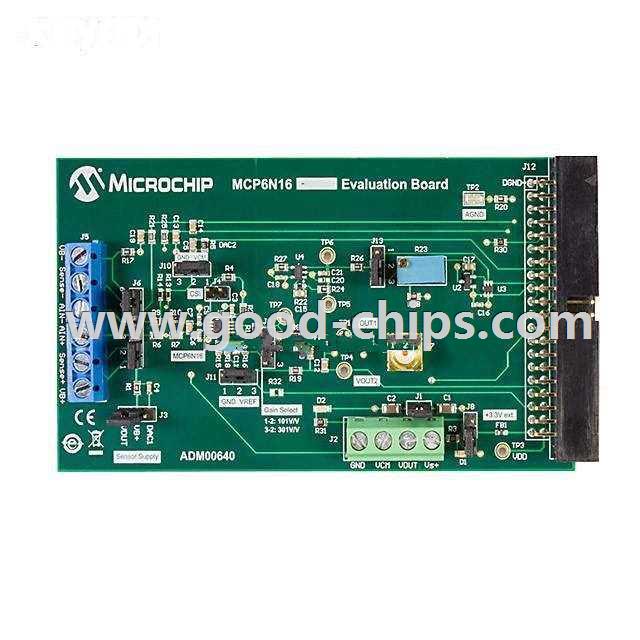

| Description: | MCP6N16 1 - Single Channels per IC Instrumentation Amplifier Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADM00640 Datasheet |
| Internal Part Number | 898-ADM00640 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | MCP6N16 Zero-Drift Instrumentation Amplifier | |
| Design Resources | MCP6N16 Eval Brd Layouts MCP6N16 Eval Brd Gerbers MCP6N16 Eval Brd BOM MCP6N16 Eval Brd Schematics Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Op Amps | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Active | |
| Channels per IC | 1 - Single | |
| Amplifier Type | Instrumentation | |
| Output Type | Single-Ended, Rail-to-Rail | |
| Slew Rate | - | |
| -3db Bandwidth | - | |
| Current - Output / Channel | 10mA | |
| Operating Temperature | -40°C ~ 125°C | |
| Current - Supply (Main IC) | 1.1mA | |
| Voltage - Supply, Single/Dual (±) | 1.8 V ~ 5.5 V | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | MCP6N16 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADM00640 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADM00640 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of ADM00640 is new and unused, you can buy ADM00640 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADM00640.
