| Manufacturer Part Number: | ADM00556 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9017 Pieces |
| Unit Price: | Quote by Email |

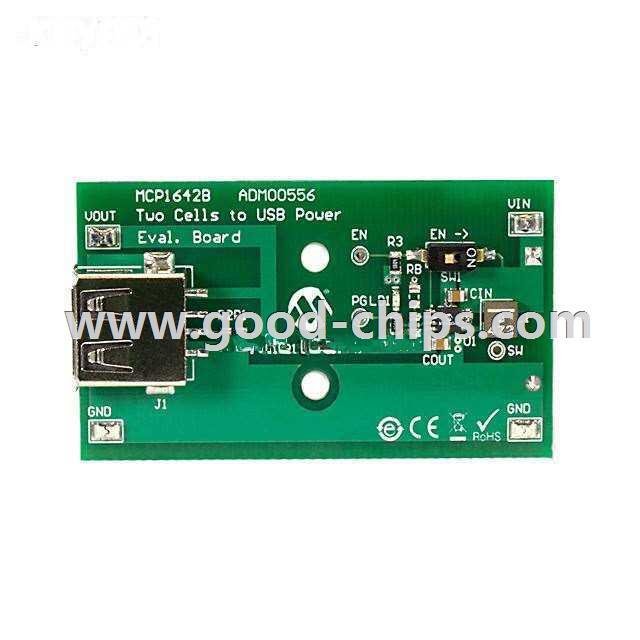

| Description: | MCP1642B - DC/DC, Step Up or Down 1, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADM00556 Datasheet |
| Internal Part Number | 898-ADM00556 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | MCP1642B Eval Brd (ADM00556) BOM MCP1642B Eval Brd (ADM00556) Schematics MCP1642B Eval Brd (ADM00556) Gerbers Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP1642 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Up or Down | |
| Outputs and Type | 1, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 5V | |
| Current - Output | 700mA | |
| Voltage - Input | 1.8 V ~ 5.5 V | |
| Regulator Topology | Boost | |
| Frequency - Switching | 1MHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board, Cable | |
| Utilized IC / Part | MCP1642B | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADM00556 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADM00556 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of ADM00556 is new and unused, you can buy ADM00556 Microchip Technology with us at a very low price and quick delivery.
