Manufacturer Part Number: | ADM00555 |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Evaluation Boards - LED Drivers |
Available Quantity: | 9018 Pieces |
Unit Price: | Quote by Email |

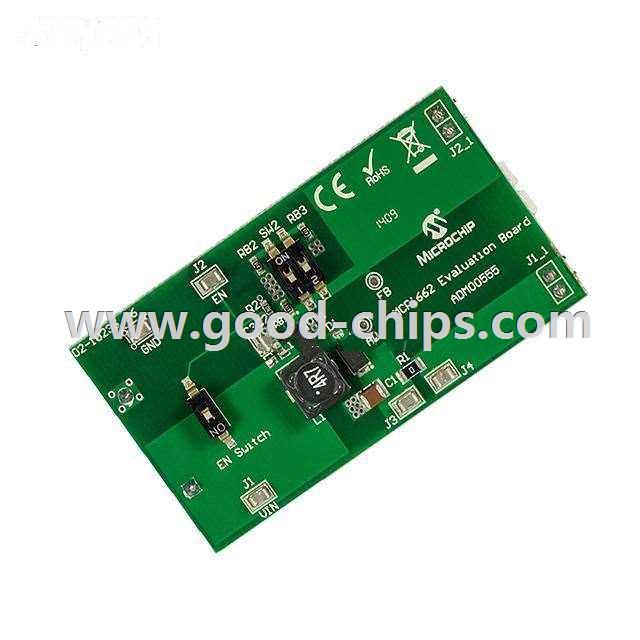

Description: | MCP1662 1, Non-Isolated Output LED Driver Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ADM00555 Datasheet |
Internal Part Number | 898-ADM00555 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | ADM00555 BOM ADM00555 Gerbers ADM00555 Schematics | |
Online Catalog | MCP1662 Evaluation Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - LED Drivers | |
Manufacturer | Microchip Technology | |
Series | - | |
Part Status | Active | |
Current - Output / Channel | 90mA | |
Outputs and Type | 1, Non-Isolated | |
Voltage - Output | - | |
Features | Dimmable | |
Voltage - Input | 2.4 V ~ 5.5 V | |
Supplied Contents | Board | |
Utilized IC / Part | MCP1662 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ADM00555 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ADM00555 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of ADM00555 is new and unused, you can buy ADM00555 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADM00555.
