| Manufacturer Part Number: | ADM00523 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |

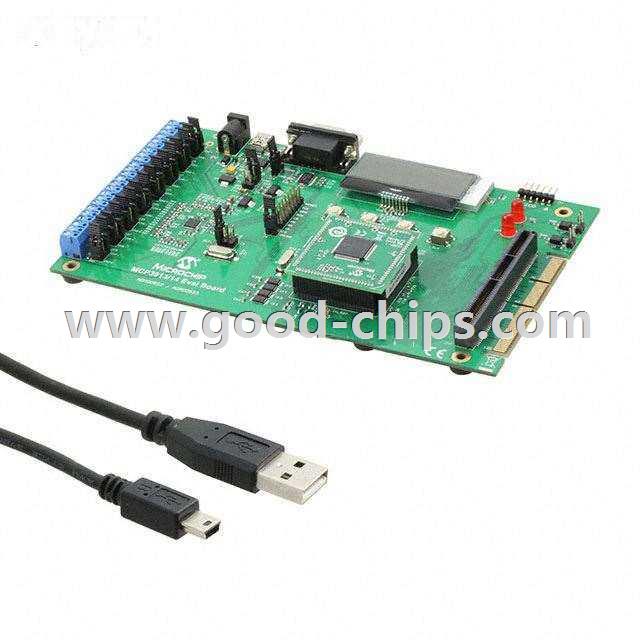

| Description: | MCP3914 - Power Management, Energy/Power Meter Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADM00523 Datasheet |
| Internal Part Number | 898-ADM00523 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | ADM00523 BOM ADM00523 Schematic ADM00523 Gerbers Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP3914 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Power Management, Energy/Power Meter | |
| Embedded | Yes, MCU, 16-Bit | |
| Utilized IC / Part | MCP3914 | |
| Primary Attributes | - | |
| Secondary Attributes | Graphical User Interface | |
| Supplied Contents | Board, Cable | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADM00523 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADM00523 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of ADM00523 is new and unused, you can buy ADM00523 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADM00523.
