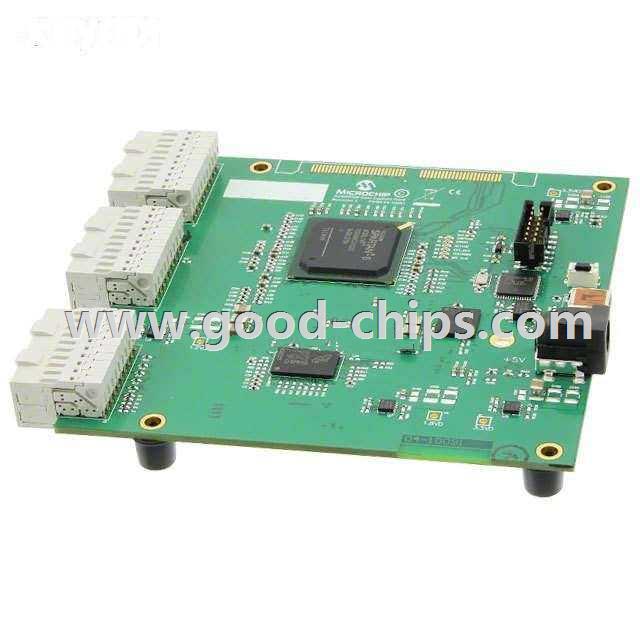

| Manufacturer Part Number: | ADM00506 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |
| Description: | - Interface, Data Capture Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADM00506 Datasheet |
| Internal Part Number | 898-ADM00506 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | ADM00506 Gerbers ADM00506 BOM ADM00506 Schematics Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP37xxx High-Speed Pipeline ADC Data Capture Card | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Interface, Data Capture | |
| Embedded | Yes, FPGA / CPLD | |
| Utilized IC / Part | - | |
| Primary Attributes | ADC Evaluation | |
| Secondary Attributes | - | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADM00506 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADM00506 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of ADM00506 is new and unused, you can buy ADM00506 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADM00506.
