Stocking distributor of Electronic Components
Email: [email protected]
| Manufacturer Part Number: | ADM00435 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

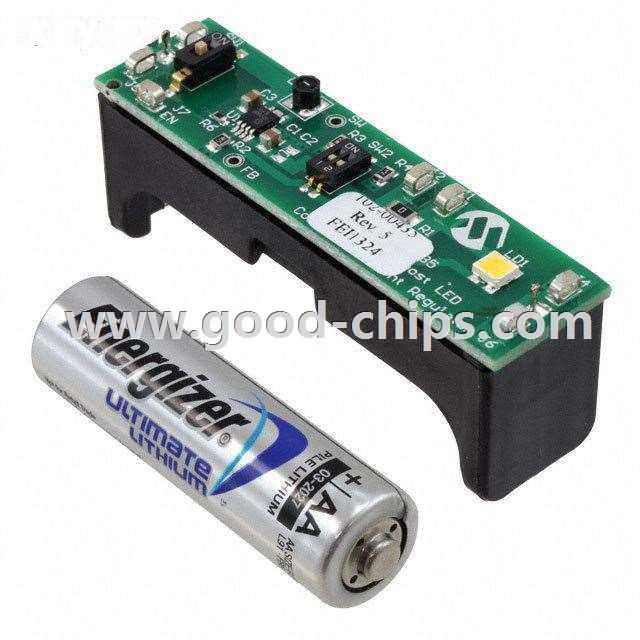

| Description: | MCP1643 1, Non-Isolated Output LED Driver Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADM00435 Datasheet |
| Internal Part Number | 898-ADM00435 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector Lighting Product Selector | |
| Reference Design Library | ADM00435: 1 LED @ 25 ~ 100mA, 0.5 ~ 5V in | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP1643 Synchronous Boost LED Constant Current Regulator Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - LED Drivers | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Active | |
| Current - Output / Channel | 25mA, 50mA, 75mA, or 100mA | |
| Outputs and Type | 1, Non-Isolated | |
| Voltage - Output | - | |
| Features | - | |
| Voltage - Input | 0.35 V ~ 2.5 V | |
| Supplied Contents | Board | |
| Utilized IC / Part | MCP1643 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADM00435 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADM00435 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of ADM00435 is new and unused, you can buy ADM00435 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADM00435.
