| Manufacturer Part Number: | ADM00399 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9016 Pieces |
| Unit Price: | Quote by Email |

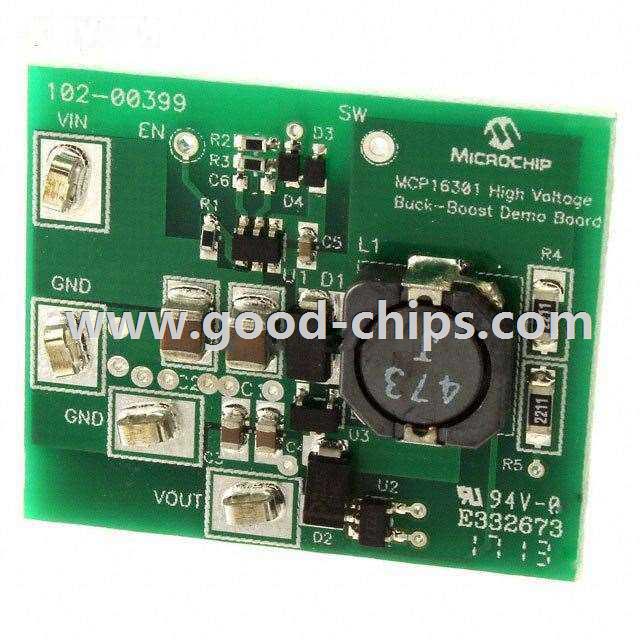

| Description: | MCP16301 - DC/DC, Step Up or Down 1, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADM00399 Datasheet |
| Internal Part Number | 898-ADM00399 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector MCP16301 BOM MCP16301 Schematic MCP16301 Gerber Files | |
| Reference Design Library | ADM00399: 3.3V @ 600mA, 4 ~ 30V in, SMPS | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP16301 High Voltage Buck-Boost Demo Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Up or Down | |
| Outputs and Type | 1, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 12V | |
| Current - Output | - | |
| Voltage - Input | 5 V ~ 30 V | |
| Regulator Topology | Buck-Boost | |
| Frequency - Switching | 500kHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | MCP16301 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADM00399 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADM00399 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of ADM00399 is new and unused, you can buy ADM00399 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADM00399.
