| Manufacturer Part Number: | ADM00360 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |

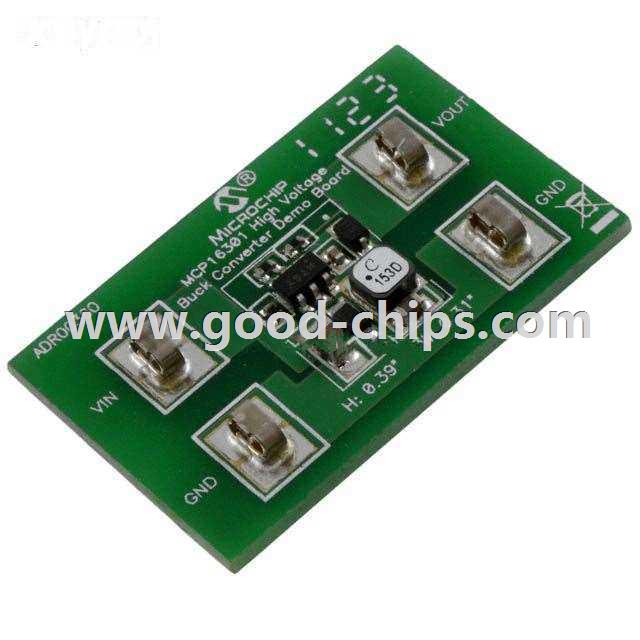

| Description: | MCP16301 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADM00360 Datasheet |
| Internal Part Number | 898-ADM00360 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | MCP16301 Design Analyzer (Excel File) | |
| Mfg Application Notes | MCP16301 Design Analyzer (AN1385) | |
| Design Resources | ADM00360 Bill of Materials ADM00360 Schematic ADM00360 Gerber Files Development Tool Selector | |
| Featured Product | MCP16301 Demo Boards | |
| Reference Design Library | ADM00360: 3.3V @ 300mA, 4 ~ 26V in | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP16301 Demo Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Down | |
| Outputs and Type | 1, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 3.3V | |
| Current - Output | 300mA | |
| Voltage - Input | 4 V ~ 26 V | |
| Regulator Topology | Buck | |
| Frequency - Switching | 500kHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | MCP16301 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADM00360 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADM00360 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of ADM00360 is new and unused, you can buy ADM00360 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADM00360.
