| Manufacturer Part Number: | ADM00276 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |

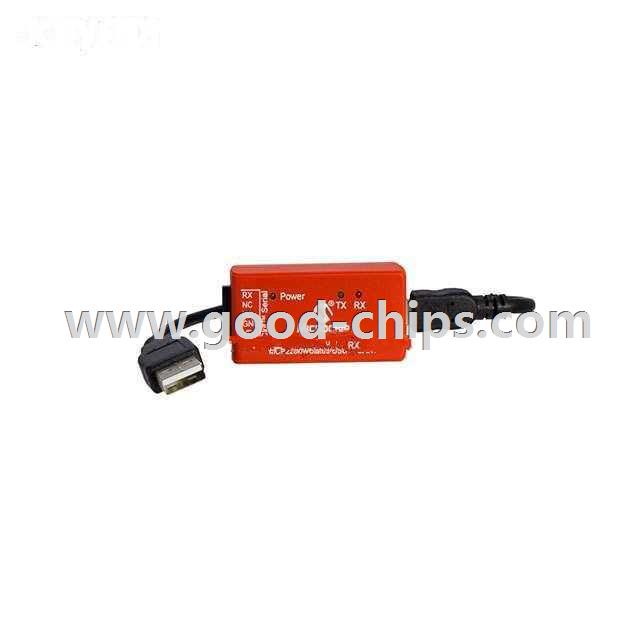

| Description: | MCP2200 - Interface, USB 2.0 to UART Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADM00276 Datasheet |
| Internal Part Number | 898-ADM00276 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | ADM00276 BOM ADM00276 Gerber Files | |
| Online Catalog | MCP2200 USB to UART with Isolation Demo Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Interface, USB 2.0 to UART | |
| Embedded | - | |
| Utilized IC / Part | MCP2200 | |
| Primary Attributes | Isolated | |
| Secondary Attributes | Graphical User Interface | |
| Supplied Contents | Board, Cable | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADM00276 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADM00276 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of ADM00276 is new and unused, you can buy ADM00276 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADM00276.
