| Manufacturer Part Number: | ADL5545ARKZ-R7 |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | RF Amplifiers |
| Available Quantity: | 10010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Amplifier IC General Purpose 30MHz ~ 6GHz SOT-89-3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADL5545ARKZ-R7 Datasheet |
| Internal Part Number | 898-ADL5545ARKZ-R7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Featured Product | ADL554x, ADL561x RF/IF Gain Blocks 4th Quarter Select Products | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Analog Devices Amplifiers | |
| Category | RF/IF and RFID | |
| Family | RF Amplifiers | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency | 30MHz ~ 6GHz | |
| P1dB | 18.1dBm | |
| Gain | 24.1dB | |
| Noise Figure | 2.9dB | |
| RF Type | General Purpose | |
| Voltage - Supply | 4.75 V ~ 5.25 V | |
| Current - Supply | 56mA | |
| Test Frequency | 900MHz | |

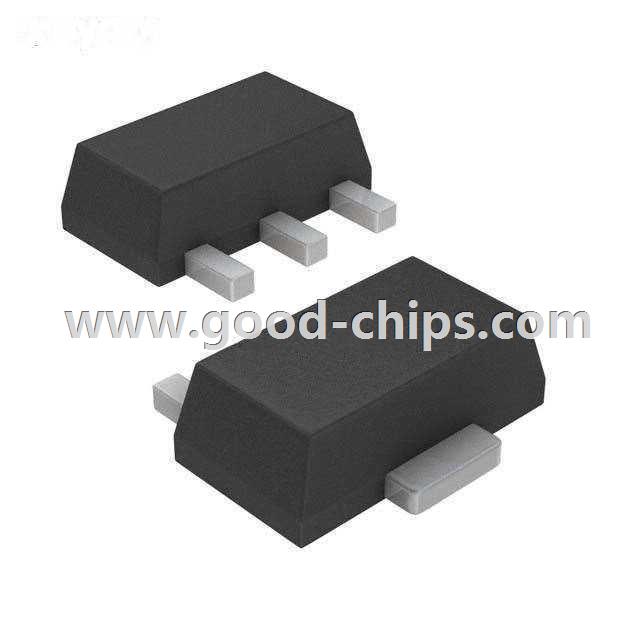

| Package / Case | TO-243AA | |
| Supplier Device Package | SOT-89-3 | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADL5545ARKZ-R7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADL5545ARKZ-R7 is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADL5545ARKZ-R7 is new and unused, you can buy ADL5545ARKZ-R7 Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADL5545ARKZ-R7.
