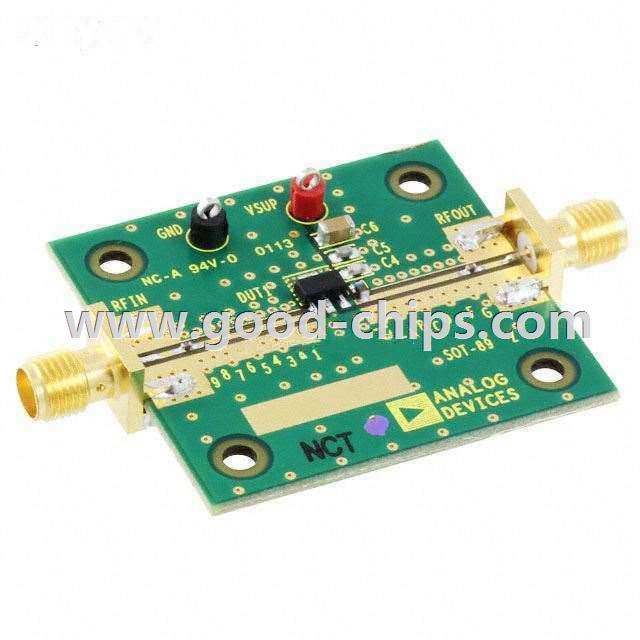

ADL5544-EVALZ

ADL5544-EVALZ
Manufacturer Part Number:ADL5544-EVALZ
Manufacturer:
Product Category:RF Evaluation and Development Kits, Boards
Available Quantity:9012 Pieces
Unit Price:Quote by Email
Description:EVAL BOARD GAIN BLOCK ADL5544
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: ADL5544-EVALZ Datasheet
ADL5544-EVALZ´s Parameters
Internal Part Number898-ADL5544-EVALZ
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Design ResourcesADL5544 Gerber Files
Development Tool Selector
IoT Product Selector
Online Catalog ADL5544 Evaluation Board
CategoryRF/IF and RFID
FamilyRF Evaluation and Development Kits, Boards
ManufacturerAnalog Devices Inc.
Series-
Part StatusActive
TypeAmplifier
Frequency30MHz ~ 6GHz
For Use With/Related ProductsADL5544
Supplied ContentsBoard
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement PartADL5544-EVALZ
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

ADL5544-EVALZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADL5544-EVALZ is new and unused, you can buy ADL5544-EVALZ Analog Devices Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for ADL5544-EVALZ.
