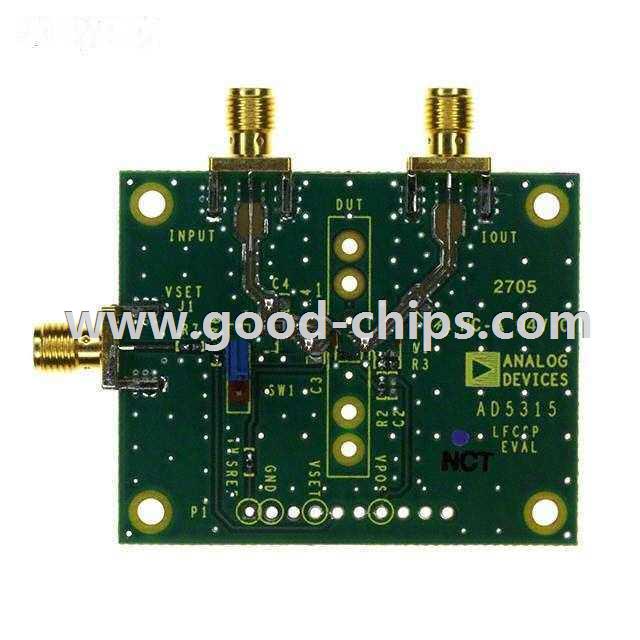

| Manufacturer Part Number: | ADL5315-EVAL |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |
| Description: | ADL5315 - Power Management, Current Mirror Evaluation Board |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADL5315-EVAL Datasheet |
| Internal Part Number | 898-ADL5315-EVAL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Interfacing ADL5315 to Translinear Logarithmic Amplifier (CN0056) Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Power Management, Current Mirror | |
| Embedded | No | |
| Utilized IC / Part | ADL5315 | |
| Primary Attributes | Current Mirror, High Side, 3nA ~ 3mA | |
| Secondary Attributes | 2.7 ~ 8V, Linearity of 1%, Adjustable Input Current Limit | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADL5315-EVAL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADL5315-EVAL is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADL5315-EVAL is new and unused, you can buy ADL5315-EVAL Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADL5315-EVAL.
