Manufacturer Part Number: | ADIS16448/PCBZ |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | Evaluation Boards - Sensors |
Available Quantity: | 9015 Pieces |
Unit Price: | Quote by Email |

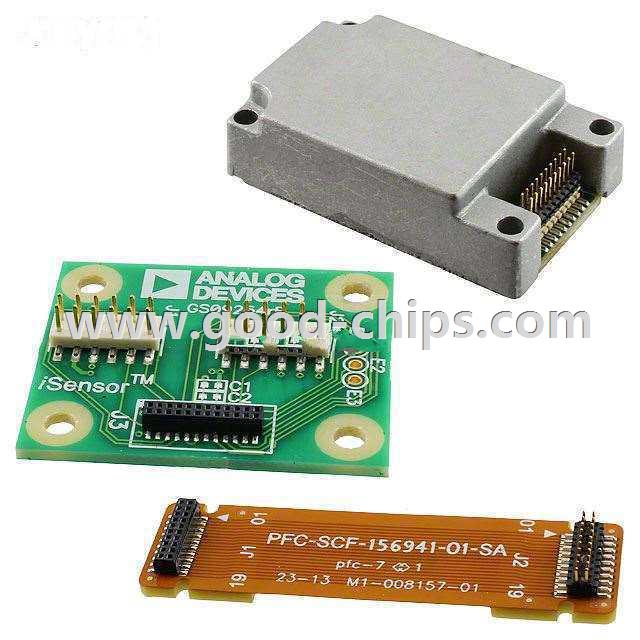

Description: | ADIS16448 iMEMS®, iSensor™ Accelerometer, Gyroscope, Magnetometer, Pressure, Temperature Sensor Evaluation Board |
Lead Free Status / RoHS Status: | Not applicable / Not applicable |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ADIS16448/PCBZ Datasheet |
Internal Part Number | 898-ADIS16448/PCBZ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | MEMS Based Inertial Measurement Units | |
Design Resources | Development Tool Selector | |
Online Catalog | ADIS16448 Breakout Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Sensors | |
Manufacturer | Analog Devices Inc. | |
Series | iMEMS®, iSensor™ | |
Part Status | Active | |
Sensor Type | Accelerometer, Gyroscope, Magnetometer, Pressure, Temperature | |
Sensing Range | ±18g; 1200°/sec; ±1.9gauss; 300 ~ 1100mbar | |
Interface | SPI Serial | |
Sensitivity | - | |
Voltage - Supply | 3.15 V ~ 3.45 V | |
Embedded | No | |
Supplied Contents | Board | |
Utilized IC / Part | ADIS16448 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ADIS16448/PCBZ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ADIS16448/PCBZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADIS16448/PCBZ is new and unused, you can buy ADIS16448/PCBZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADIS16448/PCBZ.
