Manufacturer Part Number: | ADIS16364/PCBZ |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | Evaluation Boards - Sensors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

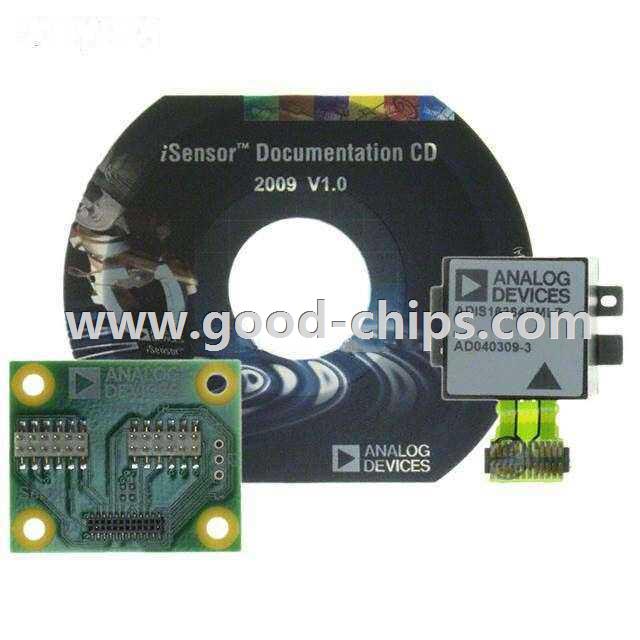

Description: | ADIS16364 iMEMS®, iSensor™ Accelerometer, Gyroscope, 3 Axis Sensor Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ADIS16364/PCBZ Datasheet |
Internal Part Number | 898-ADIS16364/PCBZ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | MEMS Based Inertial Measurement Units | |
Software Download | ADIS163xx Eval Software | |
Design Resources | Development Tool Selector | |
PCN Obsolescence/ EOL | ADIS1636x/40x Evaluation Boards 18/Apr/2014 | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Sensors | |
Manufacturer | Analog Devices Inc. | |
Series | iMEMS®, iSensor™ | |
Part Status | Obsolete | |
Sensor Type | Accelerometer, Gyroscope, 3 Axis | |
Sensing Range | ±5g, ±75°/sec, ±150°/sec, ±300°/sec | |
Interface | SPI Serial | |
Sensitivity | 1mg/LSB, 0.0125 ~ 0.05°/sec/LSB | |
Voltage - Supply | 4.75 V ~ 5.25 V | |
Embedded | No | |
Supplied Contents | 2 Boards | |
Utilized IC / Part | ADIS16364 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ADIS16364/PCBZ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ADIS16364/PCBZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADIS16364/PCBZ is new and unused, you can buy ADIS16364/PCBZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADIS16364/PCBZ.
