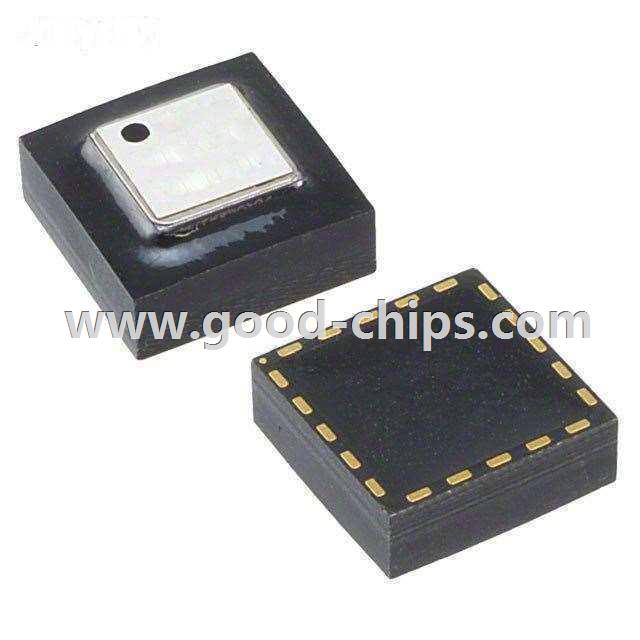

| Manufacturer Part Number: | ADIS16266BCCZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Motion Sensors - Gyroscopes |
| Available Quantity: | 9029 Pieces |
| Unit Price: | Quote by Email |
| Description: | Gyroscope Z (Yaw) ±3500, 7000, 14000 360Hz SPI 20-LGA (11x11) |
| Lead Free Status / RoHS Status: | Lead free by exemption / RoHS compliant by exemption |
| Moisture Sensitivity Level (MSL): | 5 (48 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADIS16266BCCZ Datasheet |
| Internal Part Number | 898-ADIS16266BCCZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | MEMS Based Inertial Measurement Units | |
| PCN Obsolescence/ EOL | iSensor Product OBS 20/Apr/2016 | |
| PCN Assembly/Origin | Add Test Site 10/Feb/2016 | |
| PCN Packaging | ADiS1626X 15/Aug/2016 | |
| Online Catalog | ADIS16266 | |
| Category | Sensors, Transducers | |
| Family | Motion Sensors - Gyroscopes | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Last Time Buy | |
| Type | Digital | |
| Axis | Z (Yaw) | |
| Range °/s | ±3500, 7000, 14000 | |
| Sensitivity (LSB/(°/s)) | 0.2 ~ 0.9 | |
| Sensitivity (mV/°/s) | - | |
| Bandwidth | 360Hz | |
| Output Type | SPI | |
| Voltage - Supply | 4.75 V ~ 5.25 V | |
| Current - Supply | 41mA | |
| Features | Adjustable Bandwidth, Sleep Mode, Temperature Sensor | |
| Operating Temperature | -40°C ~ 105°C (TA) | |
| Package / Case | 20-LFLGA | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADIS16266BCCZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADIS16266BCCZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADIS16266BCCZ is new and unused, you can buy ADIS16266BCCZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADIS16266BCCZ.
