| Manufacturer Part Number: | ADIS16265/PCBZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9023 Pieces |
| Unit Price: | Quote by Email |

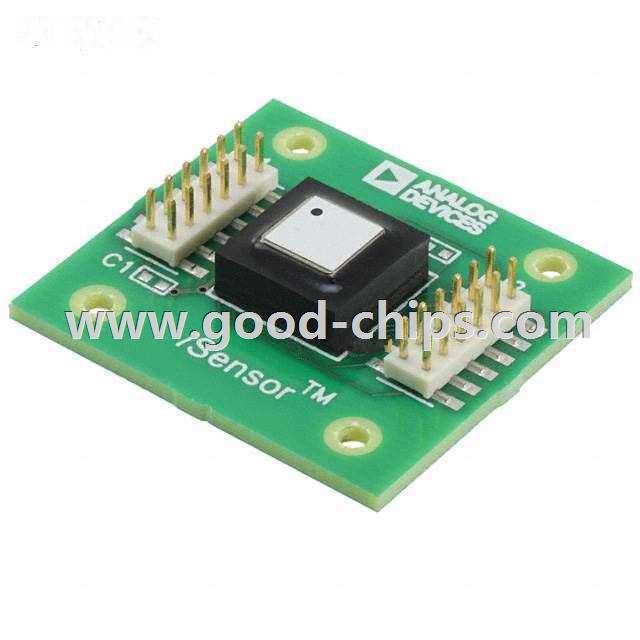

| Description: | ADIS16265 iMEMS®, iSensor™ Gyroscope, 1 Axis Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Not applicable / Not applicable |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADIS16265/PCBZ Datasheet |
| Internal Part Number | 898-ADIS16265/PCBZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | MEMS Based Inertial Measurement Units | |
| Design Resources | Development Tool Selector | |
| Online Catalog | ADIS16265 Breakout Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | Analog Devices Inc. | |
| Series | iMEMS®, iSensor™ | |
| Part Status | Active | |
| Sensor Type | Gyroscope, 1 Axis | |
| Sensing Range | ±80°/sec, ±160°/sec, ±320°/sec | |
| Interface | SPI | |
| Sensitivity | ±0.2% | |
| Voltage - Supply | 4.75 V ~ 5.25 V | |
| Embedded | No | |
| Supplied Contents | Board | |
| Utilized IC / Part | ADIS16265 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADIS16265/PCBZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADIS16265/PCBZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADIS16265/PCBZ is new and unused, you can buy ADIS16265/PCBZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADIS16265/PCBZ.
