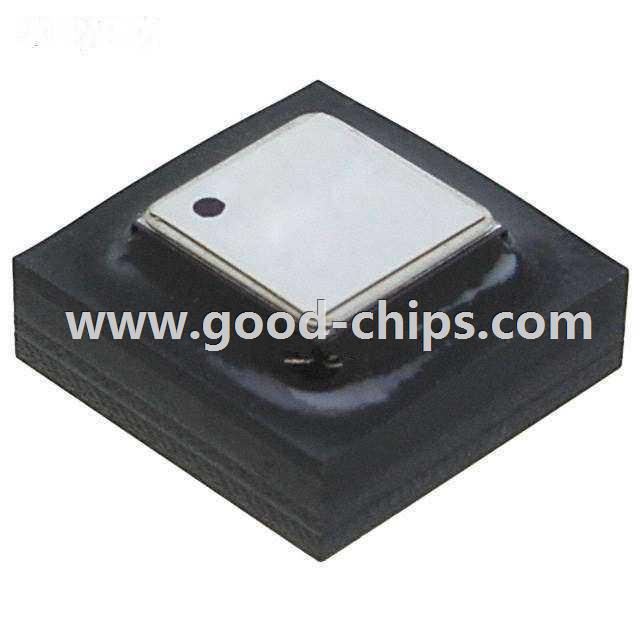

| Manufacturer Part Number: | ADIS16260BCCZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Motion Sensors - Gyroscopes |
| Available Quantity: | 9017 Pieces |
| Unit Price: | Quote by Email |
| Description: | Gyroscope Z (Yaw) ±80, 160, 320 50Hz ~ 330Hz SPI 20-LGA (11x11) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 5 (48 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADIS16260BCCZ Datasheet |
| Internal Part Number | 898-ADIS16260BCCZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | MEMS Based Inertial Measurement Units | |
| PCN Assembly/Origin | Add Test Site 10/Feb/2016 | |
| PCN Packaging | ADiS1626X 15/Aug/2016 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | ADIS16260 and ADIS16265 | |
| Category | Sensors, Transducers | |
| Family | Motion Sensors - Gyroscopes | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Digital | |
| Axis | Z (Yaw) | |
| Range °/s | ±80, 160, 320 | |
| Sensitivity (LSB/(°/s)) | 13 ~ 54 | |
| Sensitivity (mV/°/s) | - | |
| Bandwidth | 50Hz ~ 330Hz | |
| Output Type | SPI | |
| Voltage - Supply | 4.75 V ~ 5.25 V | |
| Current - Supply | 41mA | |
| Features | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | |
| Operating Temperature | -40°C ~ 105°C (TA) | |
| Package / Case | 20-BLGA | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADIS16260BCCZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADIS16260BCCZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADIS16260BCCZ is new and unused, you can buy ADIS16260BCCZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADIS16260BCCZ.
