| Manufacturer Part Number: | ADIS16201/PCBZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

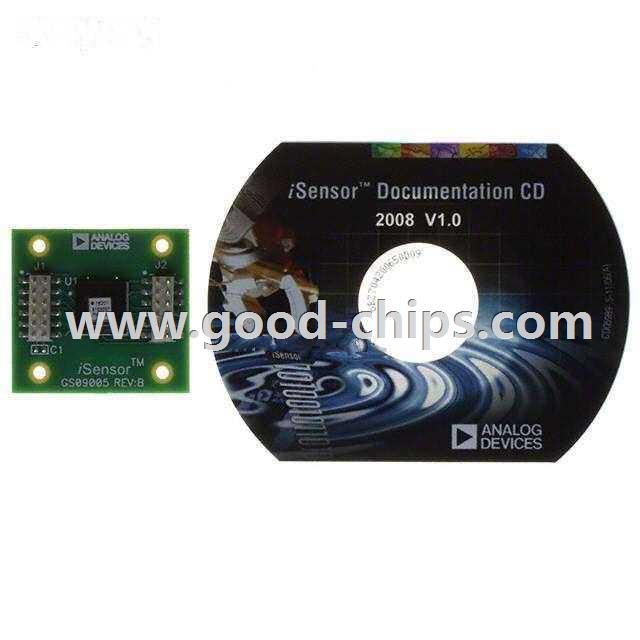

| Description: | ADIS16201 iMEMS®, iSensor™ Accelerometer, Inclinometer, 2 Axis Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADIS16201/PCBZ Datasheet |
| Internal Part Number | 898-ADIS16201/PCBZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | High Temp Products and Application | |
| Product Training Modules | iSensor | |
| Video File | MEMS Based Inertial Measurement Units | |
| Design Resources | Development Tool Selector | |
| PCN Design/Specification | ADIS16060 Plating Revision B 09/Apr/2014 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | Analog Devices Inc. | |
| Series | iMEMS®, iSensor™ | |
| Part Status | Active | |
| Sensor Type | Accelerometer, Inclinometer, 2 Axis | |
| Sensing Range | ±1.7g, ±90° | |
| Interface | SPI Serial | |
| Sensitivity | 2 LSB/mg, 10 LSB/° | |
| Voltage - Supply | 3 V ~ 3.6 V | |
| Embedded | No | |
| Supplied Contents | Board | |
| Utilized IC / Part | ADIS16201 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADIS16201/PCBZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADIS16201/PCBZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADIS16201/PCBZ is new and unused, you can buy ADIS16201/PCBZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADIS16201/PCBZ.
