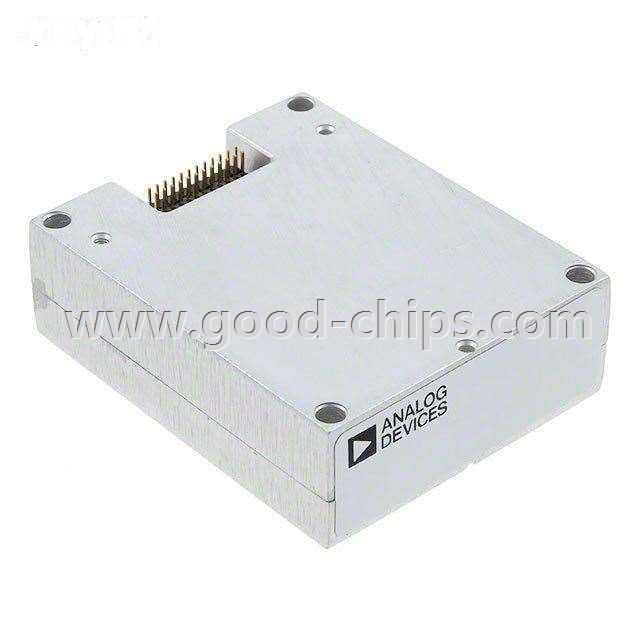

Manufacturer Part Number: | ADIS16135BMLZ |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | Motion Sensors - Gyroscopes |
Available Quantity: | 9031 Pieces |
Unit Price: | Quote by Email |
Description: | Gyroscope Z (Yaw) ±300 335Hz SPI Module |
Lead Free Status / RoHS Status: | Lead free / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ADIS16135BMLZ Datasheet |
Internal Part Number | 898-ADIS16135BMLZ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | MEMS Based Inertial Measurement Units | |
PCN Design/Specification | ADIS16130, ADIS16135 Material 23/Aug/2010 | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | ADIS16135 | |
Category | Sensors, Transducers | |
Family | Motion Sensors - Gyroscopes | |
Manufacturer | Analog Devices Inc. | |
Series | iSensor® | |
Packaging | Tray | |
Part Status | Active | |
Type | Digital | |
Axis | Z (Yaw) | |
Range °/s | ±300 | |
Sensitivity (LSB/(°/s)) | 80 | |
Sensitivity (mV/°/s) | - | |
Bandwidth | 335Hz | |
Output Type | SPI | |
Voltage - Supply | 4.85 V ~ 5.25 V | |
Current - Supply | 88mA | |
Features | Sleep Mode, Temperature Sensor | |
Operating Temperature | -40°C ~ 105°C (TA) | |
Package / Case | Module | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ADIS16135BMLZ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ADIS16135BMLZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADIS16135BMLZ is new and unused, you can buy ADIS16135BMLZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADIS16135BMLZ.
