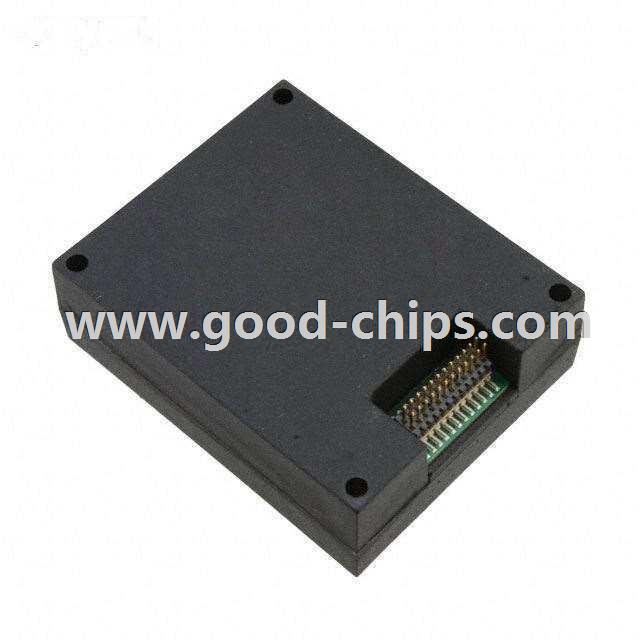

| Manufacturer Part Number: | ADIS16130AMLZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Motion Sensors - Gyroscopes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Gyroscope Z (Yaw) ±250 300Hz SPI Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADIS16130AMLZ Datasheet |
| Internal Part Number | 898-ADIS16130AMLZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | MEMS Based Inertial Measurement Units | |
| PCN Obsolescence/ EOL | ADIS16yyy Series 14/Dec/2012 ADIS1613x,37x,48x 19/Jul/2013 | |
| PCN Design/Specification | ADIS16130, ADIS16135 Material 23/Aug/2010 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Sensors, Transducers | |
| Family | Motion Sensors - Gyroscopes | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Type | Digital | |
| Axis | Z (Yaw) | |
| Range °/s | ±250 | |
| Sensitivity (LSB/(°/s)) | 23488 | |
| Sensitivity (mV/°/s) | - | |
| Bandwidth | 300Hz | |
| Output Type | SPI | |
| Voltage - Supply | 4.75 V ~ 5.25 V | |
| Current - Supply | 73mA | |
| Features | Temperature Sensor | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Package / Case | Module | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADIS16130AMLZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADIS16130AMLZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADIS16130AMLZ is new and unused, you can buy ADIS16130AMLZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADIS16130AMLZ.
