| Manufacturer Part Number: | ADIS16006CCCZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Motion Sensors - Accelerometers |
| Available Quantity: | 9131 Pieces |
| Unit Price: | Quote by Email |
| Description: | Accelerometer X, Y Axis ±5g 1Hz ~ 2.25kHz 12-LGA (7.35x7.20) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADIS16006CCCZ Datasheet |
| Internal Part Number | 898-ADIS16006CCCZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | iSensor | |
| Video File | MEMS Based Inertial Measurement Units | |
| PCN Assembly/Origin | Add Test Site 10/Feb/2016 | |
| PCN Packaging | Tray Dimension Update 09/Jul/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | ADIS16006 | |
| Category | Sensors, Transducers | |
| Family | Motion Sensors - Accelerometers | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Digital | |
| Axis | X, Y | |
| Acceleration Range | ±5g | |
| Sensitivity (LSB/g) | 256 | |
| Sensitivity (mV/g) | - | |
| Bandwidth | 1Hz ~ 2.25kHz | |
| Output Type | SPI | |
| Voltage - Supply | 3 V ~ 5.25 V | |
| Features | Adjustable Bandwidth, Temperature Sensor | |
| Operating Temperature | -40°C ~ 125°C (TA) | |
| Mounting Type | Surface Mount | |

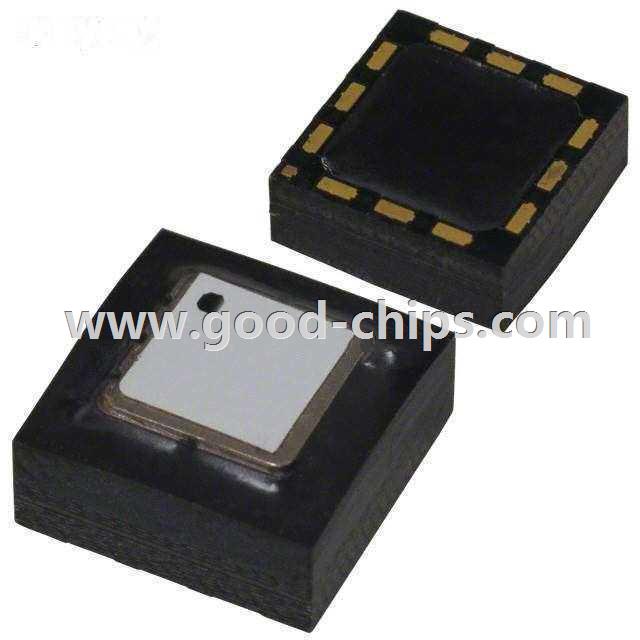

| Package / Case | 12-BLGA | |
| Supplier Device Package | 12-LGA (7.35x7.20) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADIS16006CCCZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADIS16006CCCZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADIS16006CCCZ is new and unused, you can buy ADIS16006CCCZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADIS16006CCCZ.
