Manufacturer Part Number: | ADIP16-G-LC |
---|---|
Manufacturer: | Assmann WSW Components |
Product Category: | Rectangular Connectors - Board In, Direct Wire to Board |
Available Quantity: | 9082 Pieces |
Unit Price: | Quote by Email |

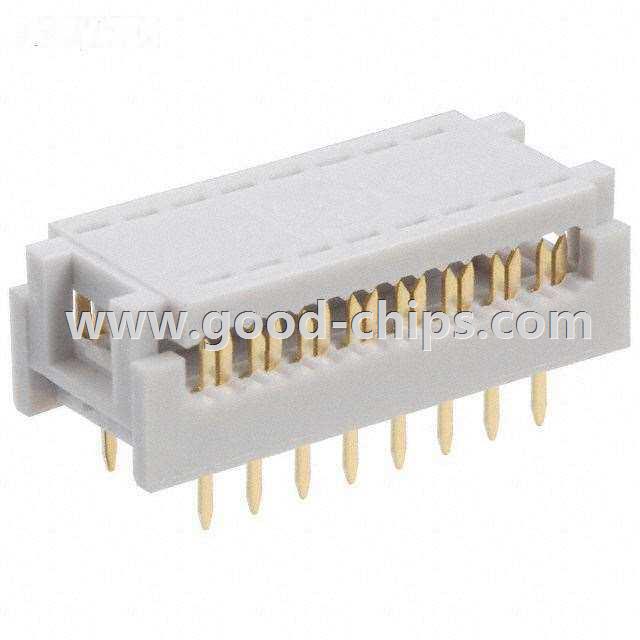

Description: | 16 Position Ribbon Cable, DIP Header Connector Black IDC Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ADIP16-G-LC Datasheet |
Internal Part Number | 898-ADIP16-G-LC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Assmann - IDC Connectors and Cables Cable Assemblies | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | ADIP Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Board In, Direct Wire to Board | |
Manufacturer | Assmann WSW Components | |
Series | - | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | Ribbon Cable, DIP Header | |
Number of Positions | 16 | |
Cable Pitch | 0.050" (1.27mm) | |
Board-Side Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Row Spacing | 0.300" (7.62mm) | |
Mounting Type | Through Hole | |
Cable Termination | IDC | |
Wire Gauge | - | |
Features | Feed Through | |
Contact Finish | Gold | |
Contact Finish Thickness | Flash | |
Color | Black | |
Number of Positions Loaded | All | |
Standard Package | 120 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ADIP16-G-LC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ADIP16-G-LC is in stock for immediate shipping now. We are the distributor of Assmann WSW Components all series components. The condition of ADIP16-G-LC is new and unused, you can buy ADIP16-G-LC Assmann WSW Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADIP16-G-LC.
