Manufacturer Part Number: | ADF15A-KG-TASB5 |
---|---|
Manufacturer: | Assmann WSW Components |
Product Category: | D-Sub Connectors |
Available Quantity: | 9039 Pieces |
Unit Price: | Quote by Email |

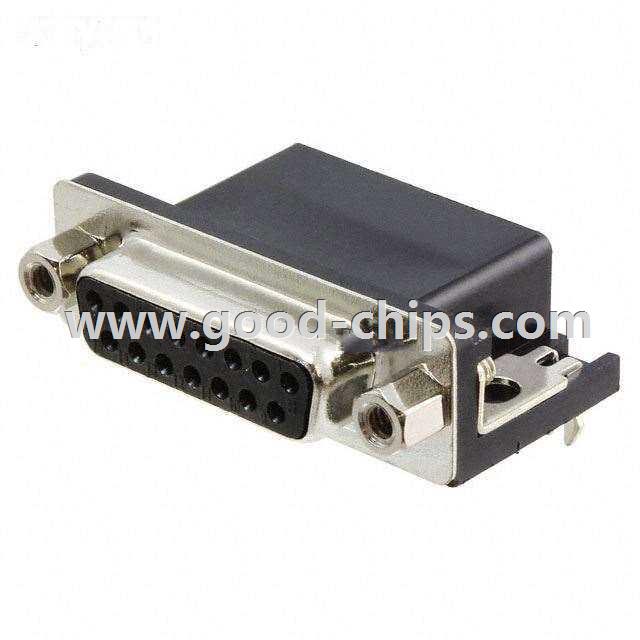

Description: | 15 Position D-Sub Receptacle, Female Sockets Connector, Through Hole, Right Angle Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ADF15A-KG-TASB5 Datasheet |
Internal Part Number | 898-ADF15A-KG-TASB5 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | ADx Series | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | Assmann WSW Components | |
Series | - | |
Packaging | Tray | |
Part Status | Active | |
Connector Style | D-Sub | |
Connector Type | Receptacle, Female Sockets | |
Number of Positions | 15 | |
Number of Rows | 2 | |
Shell Size, Connector Layout | 2 (DA, A) | |
Contact Type | Signal | |
Mounting Type | Through Hole, Right Angle | |
Flange Feature | Mating Side, Female Screwlock (4-40) | |
Termination | Solder | |
Features | Board Lock | |
Shell Material, Finish | Steel | |
Contact Finish | Gold | |
Contact Finish Thickness | - | |
Ingress Protection | - | |
Operating Temperature | -55°C ~ 125°C | |
Voltage Rating | 250V | |
Current Rating | 1A | |
Housing Material | Polybutylene Terephthalate (PBT) | |
Color | Black | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ADF15A-KG-TASB5 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ADF15A-KG-TASB5 is in stock for immediate shipping now. We are the distributor of Assmann WSW Components all series components. The condition of ADF15A-KG-TASB5 is new and unused, you can buy ADF15A-KG-TASB5 Assmann WSW Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADF15A-KG-TASB5.
