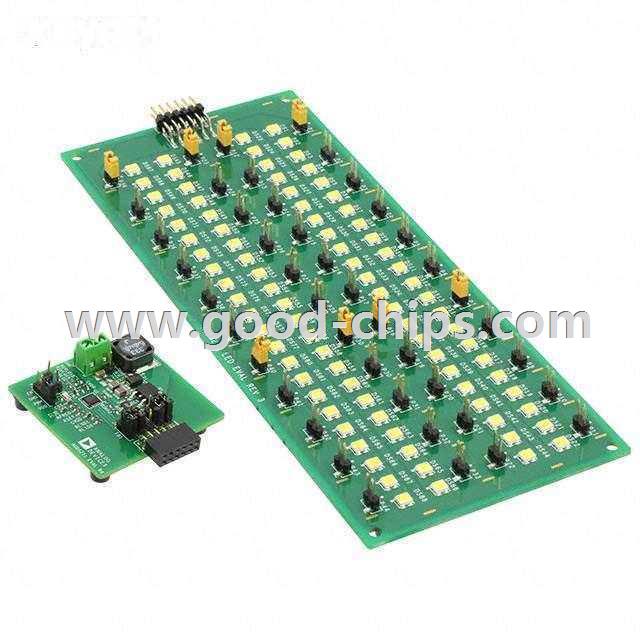

| Manufacturer Part Number: | ADD5211CP-EVALZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - LED Drivers |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |
| Description: | ADD5211 4, Non-Isolated Output LED Driver Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADD5211CP-EVALZ Datasheet |
| Internal Part Number | 898-ADD5211CP-EVALZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | ADD5211 Eval Brd BOM Development Tool Selector Lighting Product Selector | |
| Online Catalog | ADD5211 Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - LED Drivers | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Part Status | Active | |
| Current - Output / Channel | 200mA | |
| Outputs and Type | 4, Non-Isolated | |
| Voltage - Output | - | |
| Features | Dimmable | |
| Voltage - Input | 4.5 V ~ 40 V | |
| Supplied Contents | 2 Boards | |
| Utilized IC / Part | ADD5211 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADD5211CP-EVALZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADD5211CP-EVALZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADD5211CP-EVALZ is new and unused, you can buy ADD5211CP-EVALZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADD5211CP-EVALZ.
