| Manufacturer Part Number: | ADCLK954/PCBZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9014 Pieces |
| Unit Price: | Quote by Email |

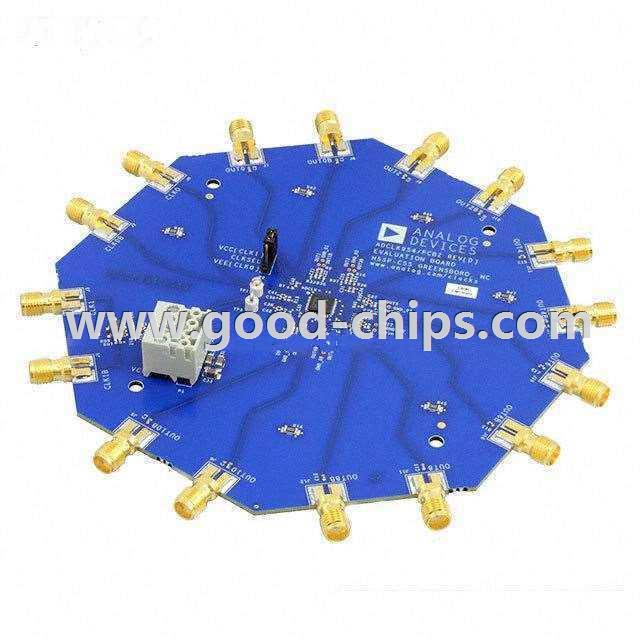

| Description: | ADCLK954 SiGe Series Timing, Clock Buffer / Driver / Receiver / Translator Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADCLK954/PCBZ Datasheet |
| Internal Part Number | 898-ADCLK954/PCBZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Solution for Wireless Communication Tester Magnetic Resonance Imaging (MRI) Solutions Medical Ultrasound Solutions | |
| Design Resources | ADCLK954/950 Brd Schematic ADCLK954 BOM ADCLK954 Gerber Files Development Tool Selector | |
| Online Catalog | ADCLK954 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Analog Devices Inc. | |
| Series | SiGe | |
| Part Status | Active | |
| Main Purpose | Timing, Clock Buffer / Driver / Receiver / Translator | |
| Embedded | No | |
| Utilized IC / Part | ADCLK954 | |
| Primary Attributes | 2 Inputs, 12 Outputs | |
| Secondary Attributes | LVPECL Output Logic | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADCLK954/PCBZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADCLK954/PCBZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADCLK954/PCBZ is new and unused, you can buy ADCLK954/PCBZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADCLK954/PCBZ.
