Manufacturer Part Number: | ADA4841-2YR-EBZ |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | Evaluation Boards - Op Amps |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

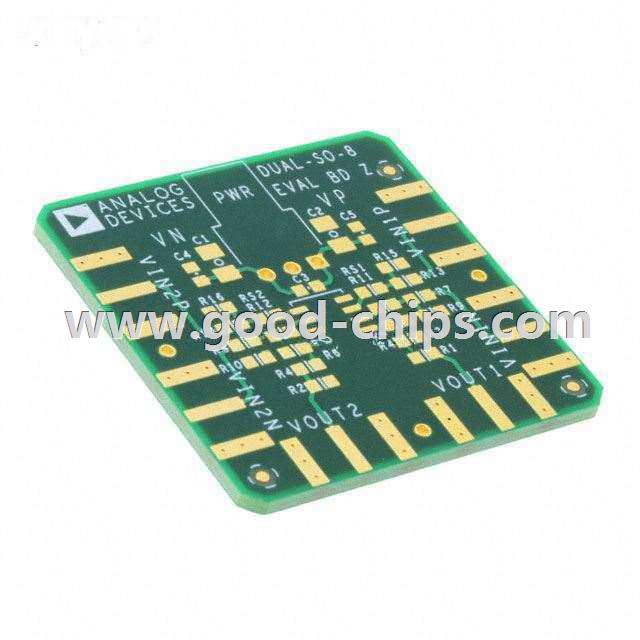

Description: | 8-SOIC Package 2 - Dual Channels per IC Voltage Feedback Amplifier Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ADA4841-2YR-EBZ Datasheet |
Internal Part Number | 898-ADA4841-2YR-EBZ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Common Photodiode Op-Amp Circuit Problems and Solutions | |
Video File | Stability 101: Parasitic Capacitance in Operational Amplifiers Stability 101: Decompensated Operational Amplifiers Stability 101: Driving a Capacitive Load (Operational Amplifiers) | |
Design Resources | Development Tool Selector | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Op Amps | |
Manufacturer | Analog Devices Inc. | |
Series | - | |
Part Status | Obsolete | |
Channels per IC | 2 - Dual | |
Amplifier Type | Voltage Feedback | |
Output Type | - | |
Slew Rate | - | |
-3db Bandwidth | - | |
Current - Output / Channel | - | |
Operating Temperature | - | |
Current - Supply (Main IC) | - | |
Voltage - Supply, Single/Dual (±) | - | |
Board Type | Bare (Unpopulated) | |
Supplied Contents | Board | |
Utilized IC / Part | 8-SOIC Package | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ADA4841-2YR-EBZ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ADA4841-2YR-EBZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADA4841-2YR-EBZ is new and unused, you can buy ADA4841-2YR-EBZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADA4841-2YR-EBZ.
