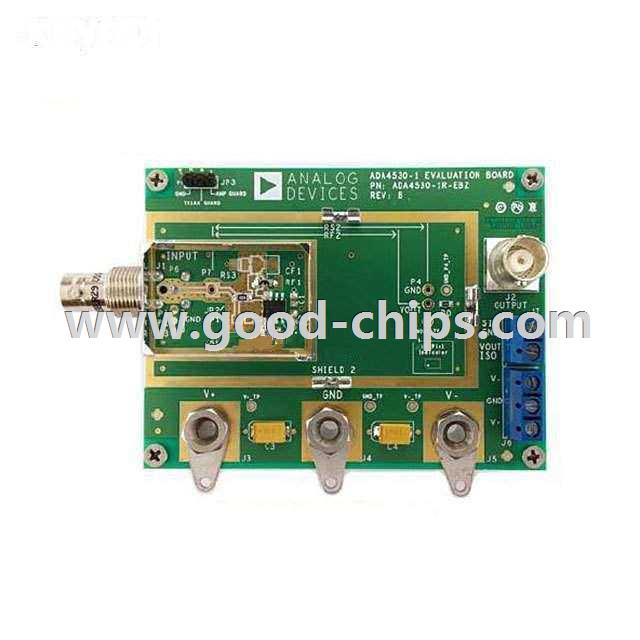

Manufacturer Part Number: | ADA4530-1R-EBZ-TIA |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | Evaluation Boards - Op Amps |
Available Quantity: | 9018 Pieces |
Unit Price: | Quote by Email |
Description: | ADA4530-1 1 - Single Channels per IC Transimpedance Amplifier Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ADA4530-1R-EBZ-TIA Datasheet |
Internal Part Number | 898-ADA4530-1R-EBZ-TIA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Mfg Application Notes | ADA4530-1 Application Note | |
Featured Product | ADA4530-1 Electrometer-Grade Amplifier Development Tools - Analog Devices │ Digi-Key Electronics | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Op Amps | |
Manufacturer | Analog Devices Inc. | |
Series | - | |
Part Status | Active | |
Channels per IC | 1 - Single | |
Amplifier Type | Transimpedance | |
Output Type | Single-Ended, Rail-to-Rail | |
Slew Rate | 1.4 V/µs | |
-3db Bandwidth | 5.5MHz | |
Current - Output / Channel | 15mA | |
Operating Temperature | -40°C ~ 125°C | |
Current - Supply (Main IC) | 900µA | |
Voltage - Supply, Single/Dual (±) | 4.5 V ~ 16 V, ±2.25 V ~ 8 V | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | ADA4530-1 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ADA4530-1R-EBZ-TIA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ADA4530-1R-EBZ-TIA is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADA4530-1R-EBZ-TIA is new and unused, you can buy ADA4530-1R-EBZ-TIA Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADA4530-1R-EBZ-TIA.
