| Manufacturer Part Number: | AD9957/PCBZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |

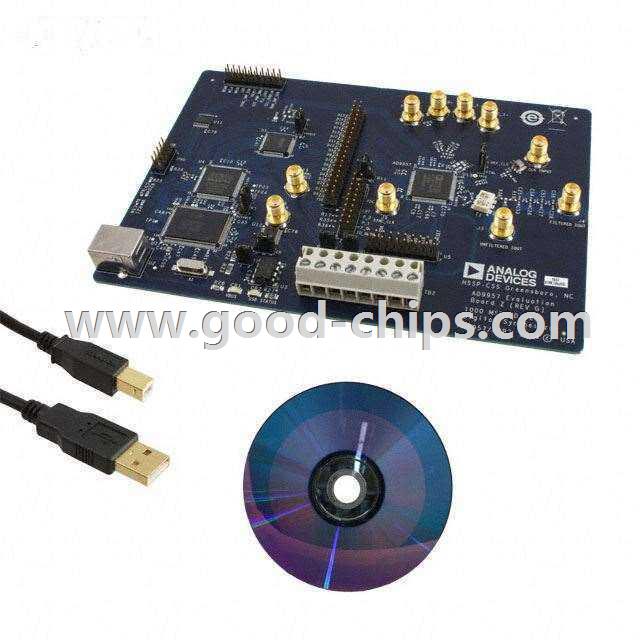

| Description: | AD9957 AgileRF™ Series Timing: DDS Modulators Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AD9957/PCBZ Datasheet |
| Internal Part Number | 898-AD9957/PCBZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Magnetic Resonance Imaging (MRI) Solutions RF Signal Source Solutions | |
| Product Training Modules | Direct Digital Synthesis Tutorial Series (1 of 7): Introduction Direct Digital Synthesizer Tutorial Series (7 of 7): DDS in Action Direct Digital Synthesis Tutorial Series (3 of 7): Angle to Amplitude Converter Direct Digital Synthesis Tutorial Series (6 of 7): SINC Envelope Correction Direct Digital Synthesis Tutorial Series (4 of 7): Digital-to-Analog Converter Direct Digital Synthesis Tutorial Series (2 of 7): The Accumulator Five Things to Know About DACs Part 5: Dynamic Performance | |
| Design Resources | AD9957 Eval Brd Schematic AD9957 BOM AD9957 Gerber Files Development Tool Selector | |
| Online Catalog | AD9957 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Analog Devices Inc. | |
| Series | AgileRF™ | |
| Part Status | Active | |
| Main Purpose | Timing: DDS Modulators | |
| Embedded | No | |
| Utilized IC / Part | AD9957 | |
| Primary Attributes | 14-Bit DAC, 32-Bit Tuning Word Width | |
| Secondary Attributes | 1GHz, Graphical User Interface | |
| Supplied Contents | Board, Cable | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AD9957/PCBZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AD9957/PCBZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD9957/PCBZ is new and unused, you can buy AD9957/PCBZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD9957/PCBZ.
