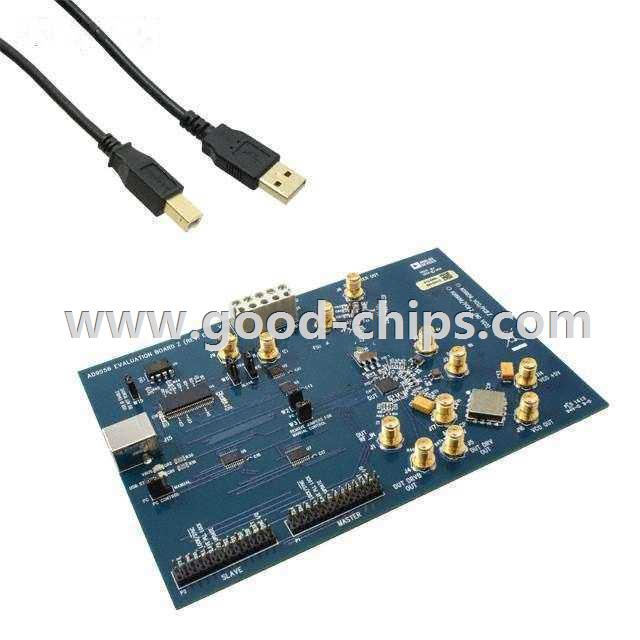

| Manufacturer Part Number: | AD9956-VCO/PCBZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AD9956 AgileRF™ Series Timing, Direct Digital Synthesis (DDS) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AD9956-VCO/PCBZ Datasheet |
| Internal Part Number | 898-AD9956-VCO/PCBZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Solution for Wireless Communication Tester | |
| Product Training Modules | Direct Digital Synthesis Tutorial Series (1 of 7): Introduction Direct Digital Synthesizer Tutorial Series (7 of 7): DDS in Action Direct Digital Synthesis Tutorial Series (3 of 7): Angle to Amplitude Converter Direct Digital Synthesis Tutorial Series (6 of 7): SINC Envelope Correction Direct Digital Synthesis Tutorial Series (4 of 7): Digital-to-Analog Converter Direct Digital Synthesis Tutorial Series (2 of 7): The Accumulator Five Things to Know About DACs Part 5: Dynamic Performance | |
| Design Resources | Development Tool Selector | |
| Online Catalog | AD9956 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Analog Devices Inc. | |
| Series | AgileRF™ | |
| Part Status | Active | |
| Main Purpose | Timing, Direct Digital Synthesis (DDS) | |
| Embedded | - | |
| Utilized IC / Part | AD9956 | |
| Primary Attributes | - | |
| Secondary Attributes | - | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AD9956-VCO/PCBZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AD9956-VCO/PCBZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD9956-VCO/PCBZ is new and unused, you can buy AD9956-VCO/PCBZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD9956-VCO/PCBZ.
