Manufacturer Part Number: | AD9859/PCBZ |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9011 Pieces |
Unit Price: | Quote by Email |

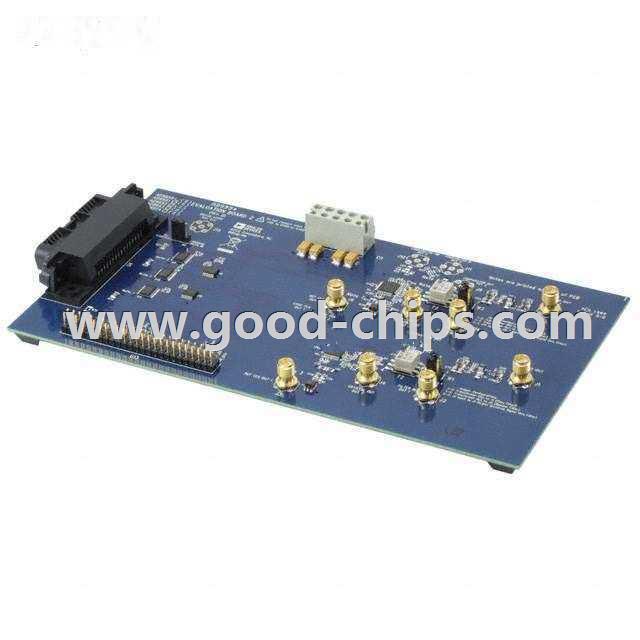

Description: | AD9859 AgileRF™ Series Timing, Direct Digital Synthesis (DDS) Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AD9859/PCBZ Datasheet |
Internal Part Number | 898-AD9859/PCBZ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Direct Digital Synthesis Tutorial Series (1 of 7): Introduction Direct Digital Synthesizer Tutorial Series (7 of 7): DDS in Action Direct Digital Synthesis Tutorial Series (3 of 7): Angle to Amplitude Converter Direct Digital Synthesis Tutorial Series (6 of 7): SINC Envelope Correction Direct Digital Synthesis Tutorial Series (4 of 7): Digital-to-Analog Converter Direct Digital Synthesis Tutorial Series (2 of 7): The Accumulator Five Things to Know About DACs Part 5: Dynamic Performance | |
Design Resources | AD9859 Eval Brd BOM AD9859, AD9951-54 Eval Brd Gerber Files Development Tool Selector | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Analog Devices Inc. | |
Series | AgileRF™ | |
Part Status | Obsolete | |
Main Purpose | Timing, Direct Digital Synthesis (DDS) | |
Embedded | No | |
Utilized IC / Part | AD9859 | |
Primary Attributes | 10-Bit DAC, 32-Bit Tuning Word Width | |
Secondary Attributes | 400MHz, Graphical User Interface | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AD9859/PCBZ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AD9859/PCBZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD9859/PCBZ is new and unused, you can buy AD9859/PCBZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD9859/PCBZ.
