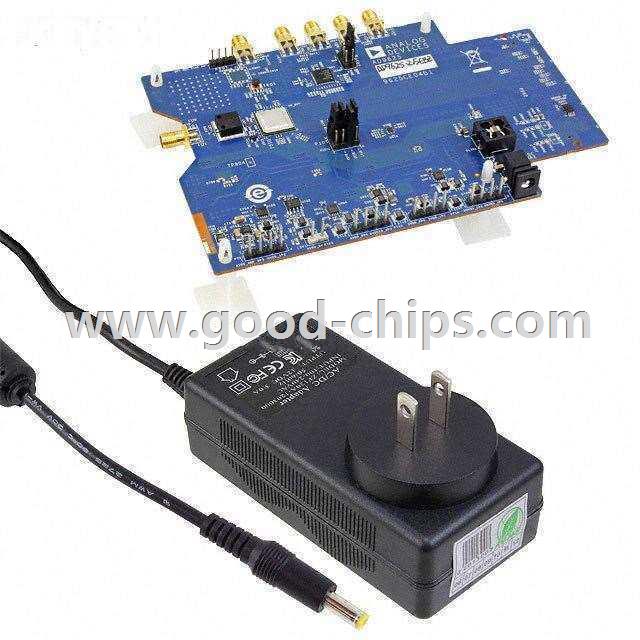

| Manufacturer Part Number: | AD9625-2.5EBZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - Analog to Digital Converters (ADCs) |
| Available Quantity: | 9020 Pieces |
| Unit Price: | Quote by Email |
| Description: | AD9625 - 12 Bit 2.5G Samples per Second Analog to Digital Converter (ADC) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AD9625-2.5EBZ Datasheet |
| Internal Part Number | 898-AD9625-2.5EBZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Solution for Wireless Communication Tester | |
| Video File | 24GHz Multi-channel Radar and Sensor Solution | |
| Design Resources | AD9625-xEBZ Schematic AD9625-xEBZ Files AD9625-xEBZ Bill of Materials Development Tool Selector | |
| Featured Product | AD9625 2 GSPS Data Converter | |
| Online Catalog | AD9625 Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Analog to Digital Converters (ADCs) | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Part Status | Active | |
| Number of A/D Converters | 1 | |
| Number of Bits | 12 | |
| Sampling Rate (Per Second) | 2.5G | |
| Data Interface | Serial JESD204B, SPI™ | |
| Input Range | 1 Vpp | |
| Power (Typ) @ Conditions | - | |
| Utilized IC / Part | AD9625 | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AD9625-2.5EBZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AD9625-2.5EBZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD9625-2.5EBZ is new and unused, you can buy AD9625-2.5EBZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD9625-2.5EBZ.
