| Manufacturer Part Number: | AD9523/PCBZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

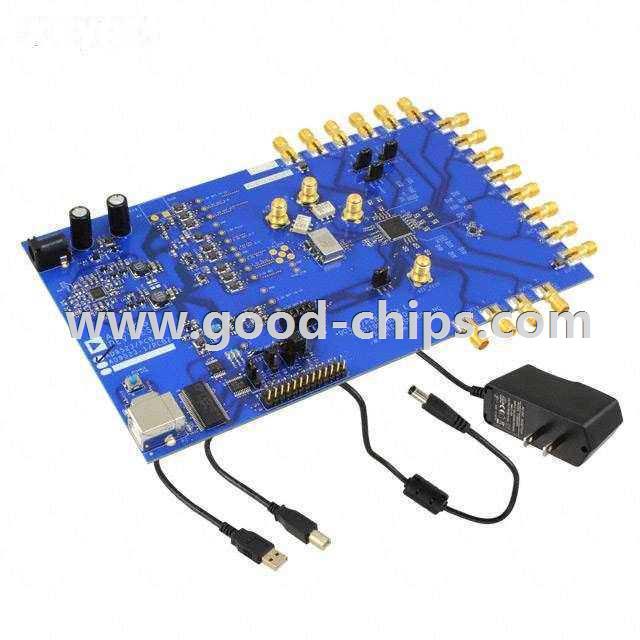

| Description: | AD9523 - Timing, Clock Generator Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AD9523/PCBZ Datasheet |
| Internal Part Number | 898-AD9523/PCBZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Spectrum Analyzer Solutions Magnetic Resonance Imaging (MRI) Solutions Medical Ultrasound Solutions | |
| Video File | PLL Frequency Planning for Spurious Signal Elimination | |
| Design Resources | AD9523(-1)Eval Board Schematic AD9523(-1) BOM AD9523(-1) Gerber Files Development Tool Selector | |
| PCN Design/Specification | AD9523 Die Revision 25/Feb/2013 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Part Status | Obsolete | |
| Main Purpose | Timing, Clock Generator | |
| Embedded | No | |
| Utilized IC / Part | AD9523 | |
| Primary Attributes | On Board PLL Loop Filter | |
| Secondary Attributes | LED Status Indicators | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AD9523/PCBZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AD9523/PCBZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD9523/PCBZ is new and unused, you can buy AD9523/PCBZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD9523/PCBZ.
