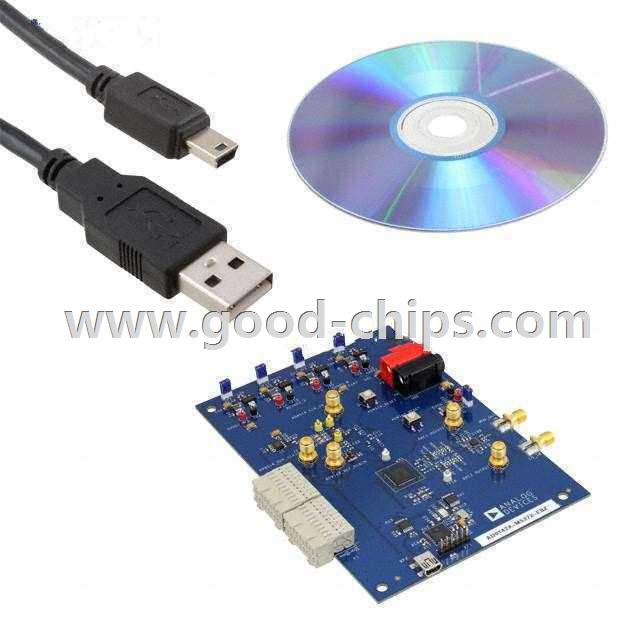

| Manufacturer Part Number: | AD9142A-M5372-EBZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - Digital to Analog Converters (DACs) |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |
| Description: | AD9142A, ADL5372 TxDAC+® Series 16 Bit 1.8G Samples Per Second Digital to Analog Converter (DAC) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AD9142A-M5372-EBZ Datasheet |
| Internal Part Number | 898-AD9142A-M5372-EBZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Solution for Wireless Communication Tester Magnetic Resonance Imaging (MRI) Solutions | |
| Design Resources | Development Tool Selector | |
| Featured Product | AD9142A Digital-to-Analog Converter 2nd Quarter Select Products | |
| Online Catalog | AD9142A Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Digital to Analog Converters (DACs) | |
| Manufacturer | Analog Devices Inc. | |
| Series | TxDAC+® | |
| Part Status | Active | |
| Number of DAC's | 2 | |
| Number of Bits | 16 | |
| Sampling Rate (Per Second) | 1.8G | |
| Data Interface | LVDS - Serial, SPI | |
| Settling Time | 20ns | |
| DAC Type | Current | |
| Operating Temperature | -40°C ~ 85°C | |
| Supplied Contents | Board, Cable | |
| Utilized IC / Part | AD9142A, ADL5372 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AD9142A-M5372-EBZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AD9142A-M5372-EBZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD9142A-M5372-EBZ is new and unused, you can buy AD9142A-M5372-EBZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD9142A-M5372-EBZ.
