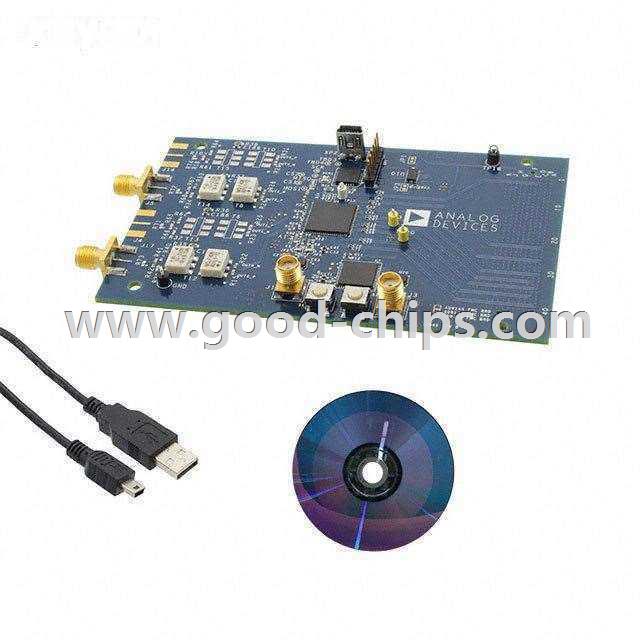

Manufacturer Part Number: | AD9136-FMC-EBZ |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | Evaluation Boards - Digital to Analog Converters (DACs) |
Available Quantity: | 9014 Pieces |
Unit Price: | Quote by Email |
Description: | AD9136 TxDAC+® Series 16 Bit 2.8G Samples Per Second Digital to Analog Converter (DAC) Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AD9136-FMC-EBZ Datasheet |
Internal Part Number | 898-AD9136-FMC-EBZ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Featured Product | AD9136 Digital-to-Analog Converter | |
Online Catalog | AD9135 and AD9136 Evaluation Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Digital to Analog Converters (DACs) | |
Manufacturer | Analog Devices Inc. | |
Series | TxDAC+® | |
Part Status | Active | |
Number of DAC's | 2 | |
Number of Bits | 16 | |
Sampling Rate (Per Second) | 2.8G | |
Data Interface | JESD204B Serial | |
Settling Time | 20ns | |
DAC Type | Current | |
Operating Temperature | -40°C ~ 85°C | |
Supplied Contents | Board | |
Utilized IC / Part | AD9136 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AD9136-FMC-EBZ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AD9136-FMC-EBZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD9136-FMC-EBZ is new and unused, you can buy AD9136-FMC-EBZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD9136-FMC-EBZ.
