| Manufacturer Part Number: | AD8349ARE-REEL7 |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | RF Modulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Modulator IC 700MHz ~ 2.7GHz 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AD8349ARE-REEL7 Datasheet |
| Internal Part Number | 898-AD8349ARE-REEL7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | RF/IF and RFID | |
| Family | RF Modulators | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Obsolete | |
| Function | Modulator | |
| LO Frequency | 700MHz ~ 2.7GHz | |
| RF Frequency | 700MHz ~ 2.7GHz | |
| P1dB | 5.6dBm | |
| Noise Floor | -156dBm/Hz | |
| Output Power | 5.1dBm | |
| Current - Supply | 150mA | |
| Voltage - Supply | 4.75 V ~ 5.5 V | |
| Test Frequency | 2.14GHz | |

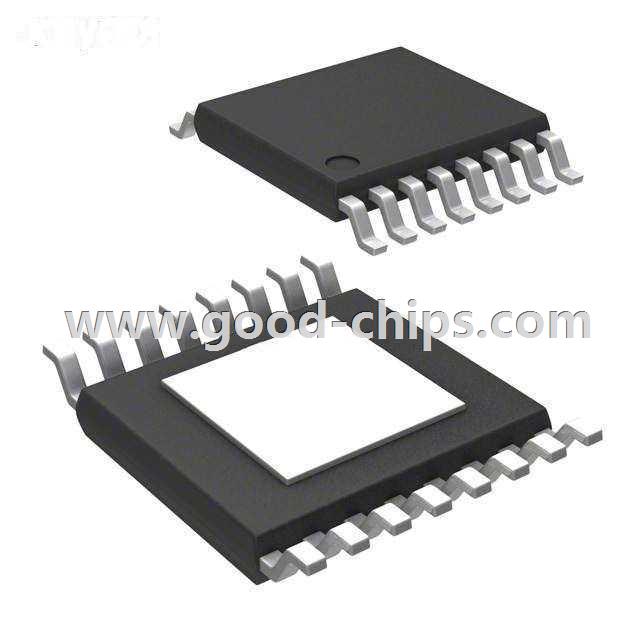

| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AD8349ARE-REEL7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AD8349ARE-REEL7 is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD8349ARE-REEL7 is new and unused, you can buy AD8349ARE-REEL7 Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD8349ARE-REEL7.
