| Manufacturer Part Number: | AD7506JQ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

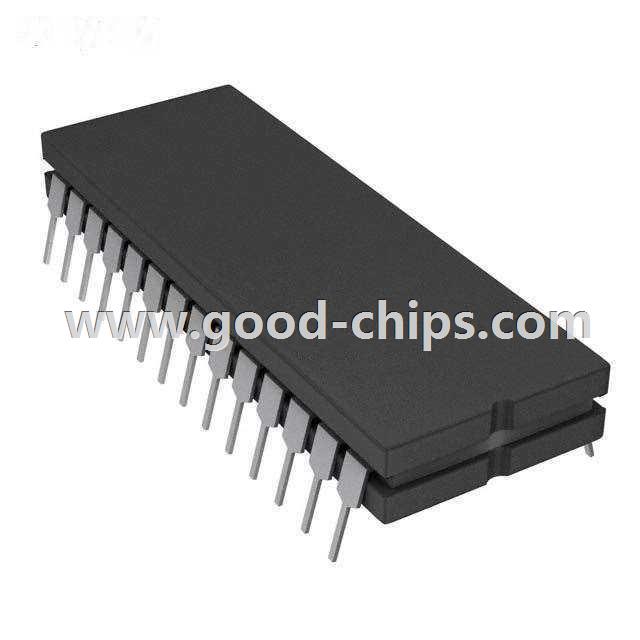

| Description: | 1 Circuit IC Switch 16:1 450 Ohm 28-CDIP |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AD7506JQ Datasheet |
| Internal Part Number | 898-AD7506JQ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices Family 27/Oct/2011 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Switch Circuit | - | |
| Multiplexer/Demultiplexer Circuit | 16:1 | |
| Number of Circuits | 1 | |
| On-State Resistance (Max) | 450 Ohm | |
| Channel-to-Channel Matching (ΔRon) | 18 Ohm | |
| Voltage - Supply, Single (V+) | - | |
| Voltage - Supply, Dual (V±) | ±15V | |
| Switch Time (Ton, Toff) (Max) | 1.5µs, 1µs | |
| -3db Bandwidth | - | |
| Charge Injection | - | |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 40pF | |
| Current - Leakage (IS(off)) (Max) | - | |
| Crosstalk | - | |
| Operating Temperature | -25°C ~ 85°C (TA) | |
| Package / Case | 28-CDIP (0.600", 15.24mm) | |
| Supplier Device Package | 28-CDIP | |
| Standard Package | 12 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AD7506JQ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
