| Manufacturer Part Number: | AD7228ACQ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Data Acquisition - Digital to Analog Converters (DAC) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 8 Bit Digital to Analog Converter 8 24-CDIP |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AD7228ACQ Datasheet |
| Internal Part Number | 898-AD7228ACQ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Data Converter Fundamentals DAC Architectures Five Things to Know About DACs Part 1: Resolution vs. Accuracy Five Things to Know About DACs Part 2: Total Unadjusted Error (TUE) Five Things to Know About DACs Part 5: Dynamic Performance Five Things to Know About DACs Part 4: Buffering | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - Digital to Analog Converters (DAC) | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Bits | 8 | |
| Number of D/A Converters | 8 | |
| Settling Time | 5µs, 7µs | |
| Output Type | Voltage - Buffered | |
| Differential Output | No | |
| Data Interface | Parallel | |
| Reference Type | External | |
| Voltage - Supply, Analog | 10.8 V ~ 16.5 V, -5V | |
| Voltage - Supply, Digital | 13.5 V ~ 16.5 V | |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) | |
| Architecture | R-2R | |
| Operating Temperature | -40°C ~ 85°C | |

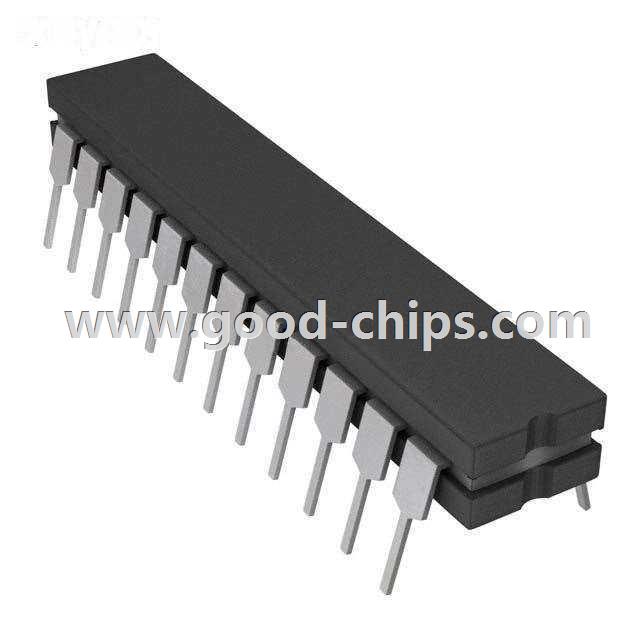

| Package / Case | 24-CDIP (0.300", 7.62mm) | |
| Supplier Device Package | 24-CDIP | |
| Standard Package | 15 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AD7228ACQ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AD7228ACQ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD7228ACQ is new and unused, you can buy AD7228ACQ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD7228ACQ.
