Manufacturer Part Number: | ACZRM5252B-HF |
---|---|
Manufacturer: | Comchip Technology |
Product Category: | Diodes - Zener - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Zener Diode 24V 500mW ±5% Surface Mount SOD-123FL |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ACZRM5252B-HF Datasheet |
Internal Part Number | 898-ACZRM5252B-HF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Packaging | Label D/C Chg24/Mar/2016 | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | SMD Zener Diode | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Zener - Single | |
Manufacturer | Comchip Technology | |
Series | Automotive, AEC-Q101 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Voltage - Zener (Nom) (Vz) | 24V | |
Tolerance | ±5% | |
Power - Max | 500mW | |
Impedance (Max) (Zzt) | 33 Ohm | |
Current - Reverse Leakage @ Vr | 100nA @ 18V | |
Voltage - Forward (Vf) (Max) @ If | - | |
Operating Temperature | -65°C ~ 150°C | |
Mounting Type | Surface Mount | |

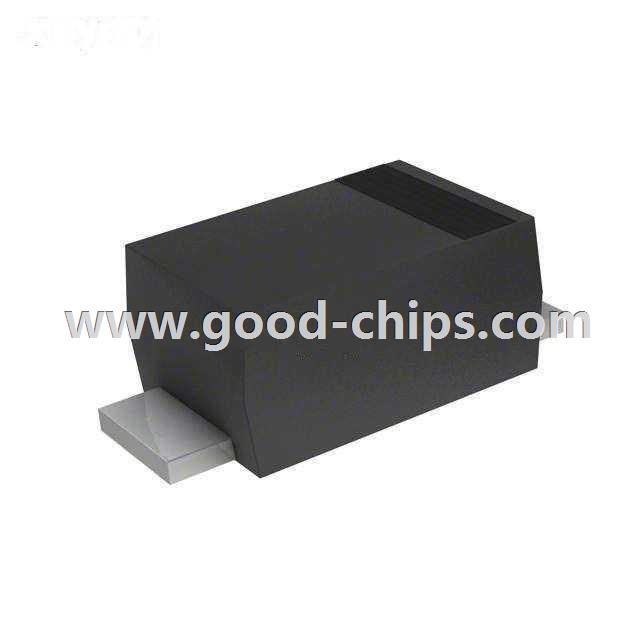

Package / Case | SOD-123F | |
Supplier Device Package | SOD-123FL | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ACZRM5252B-HF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ACZRM5252B-HF is in stock for immediate shipping now. We are the distributor of Comchip Technology all series components. The condition of ACZRM5252B-HF is new and unused, you can buy ACZRM5252B-HF Comchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ACZRM5252B-HF.
