| Manufacturer Part Number: | ACZ16NBR1E-15FA1-24C |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | Encoders |
| Available Quantity: | 9157 Pieces |
| Unit Price: | Quote by Email |

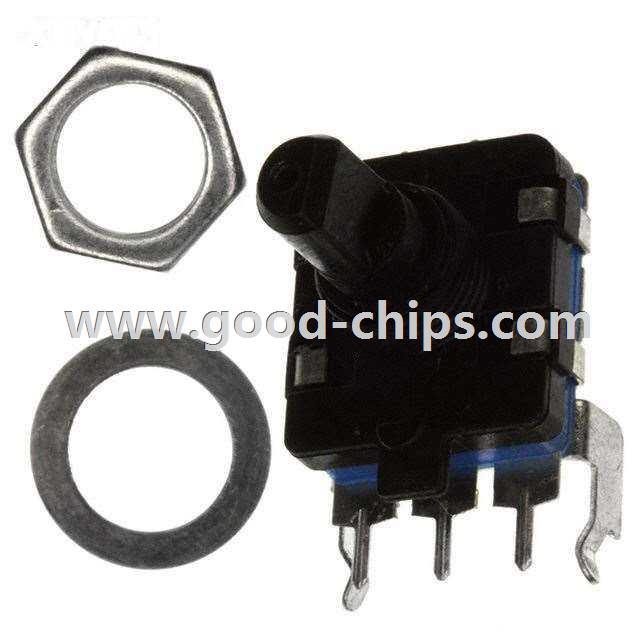

| Description: | ENCODER ROTARY 16MM HORIZ 24PPR |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ACZ16NBR1E-15FA1-24C Datasheet |
| Internal Part Number | 898-ACZ16NBR1E-15FA1-24C | |
| Manufacturer Lead time | 6-8 weeks | |
| 지위 | New & Unused, Original Sealed | |
| Product Training Modules | Panel Mount Encoders | |
| RoHS Information | ACZ16 Series Cert of Compliance | |
| Featured Product | Panel Mount Encoders | |
| Online Catalog | ACZ16 | |
| Category | Sensors, Transducers | |
| Family | Encoders | |
| Manufacturer | CUI Inc. | |
| Series | ACZ16 | |
| Part Status | Active | |
| Encoder Type | Mechanical | |
| Output Type | Quadrature (Incremental) | |
| Pulses per Revolution | 24 | |
| Voltage - Supply | 5V | |
| Actuator Type | 6mm Dia Flatted End | |
| Detent | Yes | |
| Built in Switch | No | |
| Mounting Type | Panel, PCB Through Hole | |
| Orientation | Right Angle | |
| Termination Style | PC Pin | |
| Rotational Life (Cycles Min) | 100K | |
| Standard Package | 1,020 | |
| 무게 | 0.001 KG | |
| 신청 | Email for details | |
| Replacement Part | ACZ16NBR1E-15FA1-24C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ACZ16NBR1E-15FA1-24C is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of ACZ16NBR1E-15FA1-24C is new and unused, you can buy ACZ16NBR1E-15FA1-24C CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ACZ16NBR1E-15FA1-24C.
