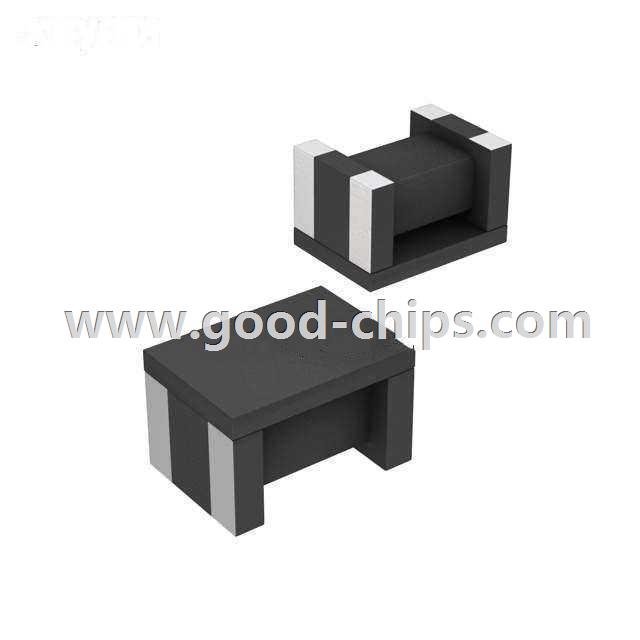

| Manufacturer Part Number: | ACT45B-510-2P-TL003 |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 16088 Pieces |
| Unit Price: | Quote by Email |
| Description: | 51µH @ 100kHz 2 Line Common Mode Choke Surface Mount 2.8 kOhm @ 10MHz 200mA DCR 1 Ohm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ACT45B-510-2P-TL003 Datasheet |
| Internal Part Number | 898-ACT45B-510-2P-TL003 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Ferrite Chip Common-Mode Filter for CAN-BUS System | |
| Online Catalog | ACT Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | TDK Corporation | |
| Series | ACT | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | 2.8 kOhm @ 10MHz | |
| Inductance @ Frequency | 51µH @ 100kHz | |
| Current Rating (Max) | 200mA | |
| DC Resistance (DCR) (Max) | 1 Ohm | |
| Voltage Rating - DC | 50V | |
| Voltage Rating - AC | - | |
| Operating Temperature | -40°C ~ 150°C | |
| Ratings | AEC-Q200 | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | |
| Height (Max) | 0.118" (3.00mm) | |
| Package / Case | Horizontal, 4 PC Pad | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ACT45B-510-2P-TL003 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ACT45B-510-2P-TL003 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of ACT45B-510-2P-TL003 is new and unused, you can buy ACT45B-510-2P-TL003 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ACT45B-510-2P-TL003.
