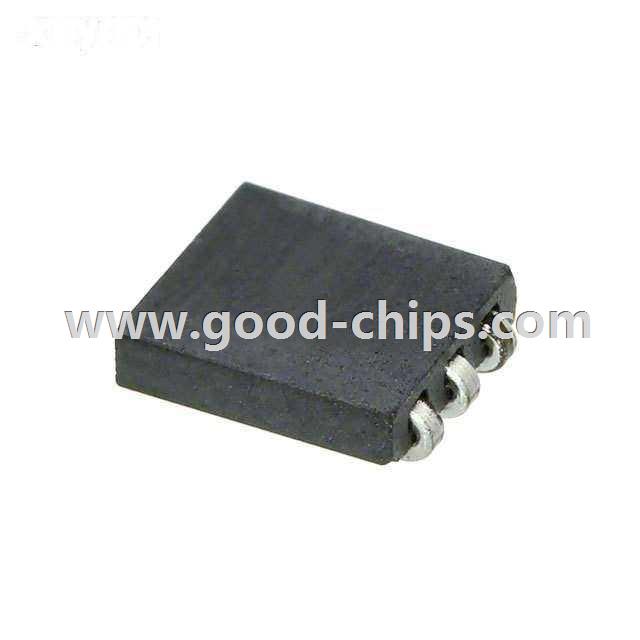

Manufacturer Part Number: | ACSB-04-T |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Ferrite Beads and Chips |
Available Quantity: | 10010 Pieces |
Unit Price: | Quote by Email |
Description: | 50 Ohm Impedance Ferrite Bead 6-SMD, J-Lead Surface Mount 5A 3 Lines 9 Ohm Max DCR -40°C ~ 85°C |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ACSB-04-T Datasheet |
Internal Part Number | 898-ACSB-04-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | ACSB-04-T.pdf ACSB-04-T.stp | |
Online Catalog | ACSB Series | |
Category | Filters | |
Family | Ferrite Beads and Chips | |
Manufacturer | Abracon LLC | |
Series | ACSB | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Filter Type | - | |
Number of Lines | 3 | |
Impedance @ Frequency | 50 Ohm @ 100MHz | |
Current Rating (Max) | 5A | |
DC Resistance (DCR) (Max) | 9 Ohm | |
Ratings | - | |
Operating Temperature | -40°C ~ 85°C | |
Package / Case | 6-SMD, J-Lead | |
Mounting Type | Surface Mount | |
Height (Max) | 0.067" (1.70mm) | |
Size / Dimension | 0.220" L x 0.197" W (5.60mm x 5.00mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ACSB-04-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ACSB-04-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ACSB-04-T is new and unused, you can buy ACSB-04-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ACSB-04-T.
