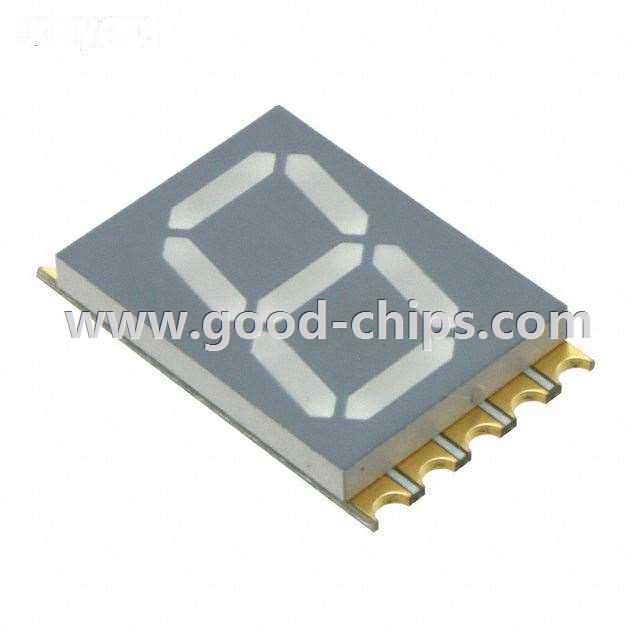

| Manufacturer Part Number: | ACSA56-51SYKWA |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | Display Modules - LED Character and Numeric |
| Available Quantity: | 9187 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LED Display Module Yellow 7-Segment 1 Character Common Anode 2V 20mA 0.669" H x 0.492" W x 0.094" D (17.00mm x 12.50mm x 2.40mm) 10-SMD (No Lead) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ACSA56-51SYKWA Datasheet |
| Internal Part Number | 898-ACSA56-51SYKWA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Ultra-Thin SMD Display | |
| 3D Model | ACDA56-51x.sldprt ACDA56-51x.pro ACDA56-51x.igs ACDA56-51x.stp | |
| Online Catalog | ACDA56 and ACSA56 Series | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Character and Numeric | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Number of Characters | 1 | |
| Size / Dimension | 0.669" H x 0.492" W x 0.094" D (17.00mm x 12.50mm x 2.40mm) | |
| Digit/Alpha Size | 0.56" (14.22mm) | |
| Display Type | 7-Segment | |
| Common Pin | Common Anode | |
| Color | Yellow | |
| Voltage - Forward (Vf) (Typ) | 2V | |
| Current - Test | 20mA | |
| Millicandela Rating | 117mcd | |
| Wavelength - Peak | 590nm | |
| Power Dissipation (Max) | 75mW | |
| Package / Case | 10-SMD (No Lead) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ACSA56-51SYKWA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ACSA56-51SYKWA is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of ACSA56-51SYKWA is new and unused, you can buy ACSA56-51SYKWA Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ACSA56-51SYKWA.
